3M Speedglas 9100xxi Mp Air Upgrade Kit, Welding Safety Helmet *no Adflo Papr

SKU: 579026


  • MP Model Has Safety Helmet
  • Flip-Up Functionality
  • 1/1/1 Classification For Optical Clarity
  • Set And Forget – Memory Functions
  • Speedglas True-View Colour View
  • Largest Mask Viewing Area Available
  • Advanced TST (TIG Sensor Technology)
  • True Colour High Definition Filter Technology
  • Unrivalled Arc Detection And Switching
  • Shade Control Automatic Welding Lens
  • Permanent Complete Protection Against UV/IR
  • All Applications With Multiple Modes
  • Auto-On: Programmed Memory
  • 3 Year Warranty
in stock

Request Price Match

Please include full website address

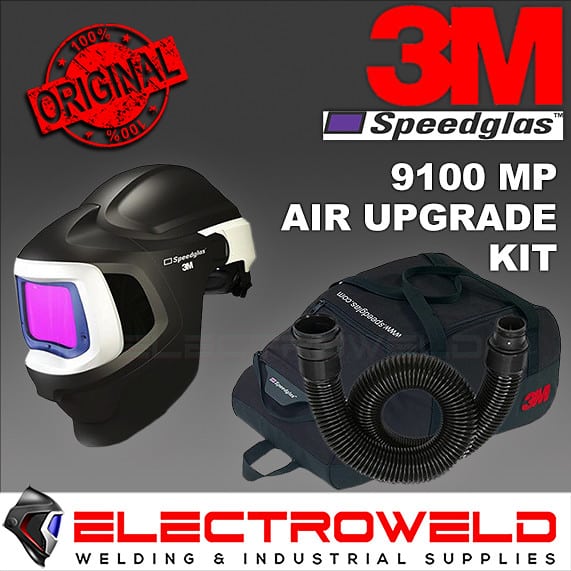

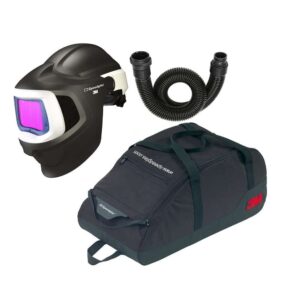

3M Speedglas Welding Helmet 9100 MP Air Upgrade Kit Includes:
1 x 3M Speedglas 9100 MP Air headtop complete with the new 9100XXi welding lens
1 x Breathing Tube: Quick Release System (QRS) hose that fits directly into your existing Adflo-powered air unit.
1 x Carry Bag
*Note: This is for helmet and breathing tube only. ADFLO Respirator is excluded. This kit allows existing 3M Adflo Welding PAPR users to economically upgrade their welding helmets. The upgrade kit simply attaches to your existing Speedglas Adflo PAPR.*
3M Speedglas Welding Helmet 9100 MP Air Upgrade Kit with 3 Year Warranty.

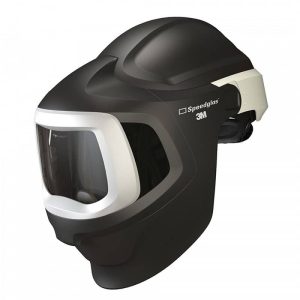

A Safety Helmet for Welding – made from heat-resistant polycarbonate and conforms to Australian and New Zealand standard AS/NZS1801 for head protection.
Super comfortable welding face seal follows the contours of both the helmet and the face to provide a positive pressure seal from pollutants. The exclusive airflow pattern of the respiratory welding mask evenly distributes filtered air throughout the entire breathing zone of the welder.
Self-Adjusting Breathing Hose: The Quick Release Swivel (QRS) allows for one-handed connection and release.
This helmet features a 1/1/1/1 classification, the highest possible classification for optical clarity.
Speedglas True-View has literally changed the way welders see, making what you see through the welding lens appear lighter, more detailed and colourful.
Huge Clear & Curved Grinding Visor: A smooth flip-up function reveals a huge 170 x 100 mm clear grinding visor with 180 degree vision.
Previously hidden peripheral hazards (beams, obstacles and other workers) are now visible through two, shade 5 side lenses (conventional shade 13 protection).
Advanced TST (TIG Sensor Technology) Welding lens photo-sensors capable of detecting an arc down to an industry-leading 1 amp with a centre sensor for TIG applications.
With Auto-On your welding helmet is instantly ready to weld; programmed to your last used welding setting.
True Colour High Definition Filter Technology greatly improves the optics allowing the user to see a full spectrum of colours. Also Assists with alleviating eye fatigue making it safer for extended periods of welding
Set and Forget: a welding helmet that remembers you. Pre-set your most frequently used welding settings and with the press of the external button, you can seamlessly switch between different welding applications.
With shades 3, 5, 8, 9-13 and multiple mode settings you can weld, cut, grind and tack, indoors and outdoors even with a completely hidden arc. Makes it ideal for Gas cutting, Plasma cutting, Low amp TIG operation and MIG welding.
The huge 9100XXi MP welding lens combined with the peripheral side windows gives you the largest auto welding helmet viewing area available on the market.
Automatic sleep mode shuts LED off when the helmet is placed into its storage bag or in darkness for battery conservation.
All Speedglas 9100 lenses have custom-designed multi-function programmed logic chips that minimise the number of discrete surface-mounted components; leading to improved reliability and longevity.
Required minimum protection factor of 50.
Built-in holder for magnifying lenses makes attaching the lens easier and optimises the position for better vision.
The silver front on a Speedglas auto-darkening welding helmet is not just a design feature, it also reflects heat from the weld keeping you cool and comfortable.
All Speedglas welding helmets are made in Sweden with every lens still checked by hand.
0/5 (0 Reviews)
Part Number: 579026
Safety Helmet: Yes
Stick: Yes
MIG: Yes
TIG: Yes (industry-leading detection down to 1 Amp)
Speedglas TrueView Welding Lens: Yes
View Size (Mm): 107 x 73 (+side windows)
Hidden Arc Mode: Yes
Side Window Feature: Yes
Classification: 1/1/1 & TrueView
Power Control: Fully Automatic
Light State: TrueView Shade 3
Auto Darkening Lens Classification: 1/1/1 & TrueView
Dark State: 5, 8, 9-13
UV Protection: Shade 13 (permanent)
Time From Light To Dark: 0.1 ms (+23 C)
Time From Dark To Light: 40-800 ms
Comfort Exhaust Vents: No (positive pressure seal for powered air)
Shade Control: Yes
Grinding Feature: Large Clear Grinding Visor (Flip-Up)
Head Harness: Custom fit, two crown straps with ratchet mechanism
Required Minimum Protection Factor: 50
Air Flow Level: 170 & 200 l/min
Eye Protection – AS/NZS1338.1 (Auto-Darkening)
Face Protection – AS/NZS1337.1 (High Impact)
Warranty: 3 Years
