  7. 3M Speedglas Welding Kit *helmet G5-01, Adflo Papr, Tube Hose Cover, Backpack*

3M Speedglas Welding Kit *helmet G5-01, Adflo Papr, Tube Hose Cover, Backpack*

SKU: 617830 Bundle


  • 1/1/1 Classification with Trueview
  • Flip-up grinding visor (170 x 104)

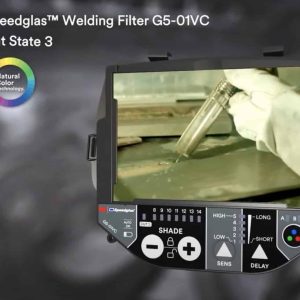

  • New G5-01VC auto-darkening lens
  • Speedglas True-View Colour View
  • Heavy-duty powered air respiratory protection
  • Largest Mask Viewing Area Available
  • Advanced TST (TIG Sensor Technology)
  • True Colour High Definition Filter Technology
  • Unrivalled Arc Detection and switching
  • New Variable Colour technology
  • New shade 14 for high amperage
  • Shades 3, 5, 8-14
  • Bluetooth connect to memory modes
  • Two adjustable air settings
  • New two-step dark-light recovery
  • Required minimum protection factor of 50
  • Grind Mode
  • 3 Year Warranty
in stock

Request Price Match

Please include full website address
What You Get:
3M Speedglas Welding Helmet G5-01 ADFLO Bundle Includes:
1 x 3M Speedglas G5-01 Heavy Duty Welding Helmet
1 x 3M Speedglas G5-01VC Auto Darkening Variable Colour Filter – 73mm x 190mm, Shades 5 & 8-143M
1 x 3M Adflo Complete System with Standard Battery, Air Hose, Air Flow Indicator, Belt and Filters
1 x 3M Speedglas Proban Breathing Tube Cover for Adflo PAPR
1 x Backpack for the Adflo PAPR
1 x Speedglas G5-01 Adflo Carry Bag
3M Speedglas G5-01VC Heavy-Duty Respiratory Welding Helmet with 3-Year Warranty
Designed specifically for heavy-duty welding, this helmet combines the new feature-packed G5-01VC auto-darkening lens and flip-up grinding visor with heavy-duty powered air respiratory protection.

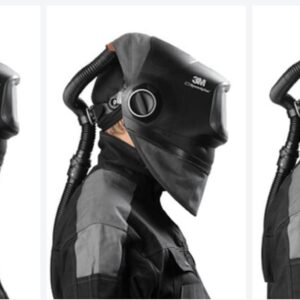

Heavy-Duty Adflo powered air respiratory protection. Revolutionary-powered airflow delivery results in improved respiratory protection and comfort (AS/NZS1716).
This helmet features a 1/1/1 classification, the highest possible classification for optical clarity.
Speedglas True-View has literally changed the way welders see, making what you see through the welding lens appear lighter, more detailed and colourful.
New Variable Colour technology allows you to choose between colour tones in the dark state (natural, cool, warm).
New shade 14 for high amperage, heavy-duty welding (shades 3,5,8-14).
A massive 73 x 109mm viewing area.
Flip-up clear grinding visor (170 x 104mm).
New two-step dark-light recovery to minimise eye strain.
New Bluetooth connectivity for memory modes, shade and colour selection.

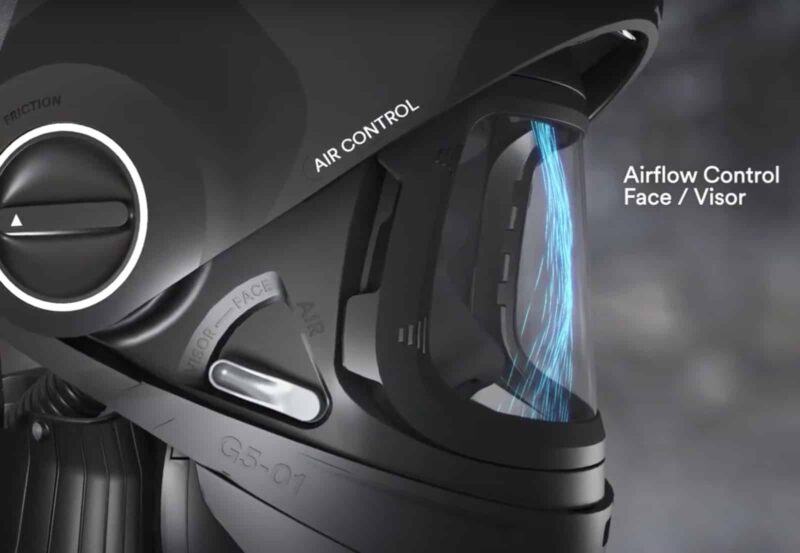

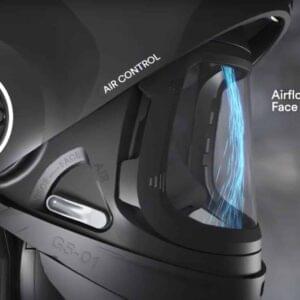

Two adjustable airflow settings 170/200 litres per minute.
Advanced TST (TIG Sensor Technology)Welding lens photo-sensors capable of detecting an arc down to an industry-leading 1 amp with a centre sensor for TIG applications.
With Auto-On your welding helmet is instantly ready to weld.
Required minimum protection factor of 50.
True Colour High Definition Filter Technology greatly improves the optics allowing the user to see a full spectrum of colours. Also Assists with alleviating eye fatigue making it safer for extended periods of welding
Grind Mode allows the operator to switch the helmet from the welding mode into a fixed shade for grinding. This function removes the need for the operator to change visors and simply use the welding helmet for grinding when required.
All Speedglas lenses have custom-designed multi-function programmed logic chips that minimise the number of discrete surface-mounted components; leading to improved reliability and longevity.
Supplied with a heavy-duty battery as standard.
All Speedglas welding helmets are made in Sweden with every lens still checked by hand.
Features Proban Hose Cover
Fire retardant proband breathing tube cover to suit Speedglas G5-01 and 9100 series, 3M Adflo as well as Versaflo V-500E breathing tubes.
Extends the life of your 3M Speedglas breathing tube.
Protects the tube from molten metal and sparks.
Helps protect your 3M Speedglas Adflo hose from general wear & tear.
Features Harness Backpack
This backpack secures the 3M™ Adflo™ PAPR system to the back of the user, adding comfort and evenly distributing weight.
Adflo backpack is suitable for long periods of working when respiratory protection is required.
The harness allows the Adflo system to access cleaner air, away from the welding pool, arc and fumes also protecting it from sparks, spatter and other materials.
0/5 (0 Reviews)
Part Number: G5-01VC
MMAW (Electrode): Yes
TIG (>20A): Yes
Plasma (welding and cutting): Yes
Tack welding: Yes
Risk of hidden arc: Yes
Grinding: Yes
Speedglas TrueView Welding Lens: Yes
3M Speedglas Variable Colour Technology: Yes
View Size (mm): 73 x 109
Viewing Area (grinding visor) (mm): 170 x 104
Classification: 1/1/1
Auto On: Yes
Light State: Shade 3 with True-View Technology
Dark State: Shade 8-14 with Variable Colour
Cut mode: Yes shade 5
UV Protection: Shade 14 (permanent)
Time from Light to Dark: 0.1 ms (+23 C)
Time from Dark to Light: 50 – 1300 ms
Memory mode: Yes, via mobile device app
Two-step recovery: Yes (shade 7)
Number of sensors (arc detection): 4
Bluetooth: Yes
Flip Up Function: Yes
Head Harness: Custom fit, two crown straps with ratchet mechanism
Battery Lifetime: 1500 Hours
Eye Protection – AS/NZS1338.1 (Auto-Darkening),
Face Protection – AS/NZS1337.1 (High Impact)
Powered Air Respiratory Protection AS/NZS1716 / RMPF1 50
Supplied Air Respiratory Protection AS/NZS1716 / RMPF1 100+
Warranty: 3 Years
Heavy Duty 3M Adflo PAPR
Standards Compliance: Conforms to AS/NZS1716
Required Minimum Protection Factor (RMPF)1): 50
Standard: 170 litres/minute
Airflow Plus: 200 litres/minute
Specifications Hose Cover:
Brand: 3M Speedglas
Part Number: 834018
Suits: 9100 welding helmet series / Speedglas G5-01 / Versaflo M-Series breathing tubes
Specifications Backpack:
Brand: 3M Speedglas
Part Number: 954015
