Bosch 18V 600 Metre Rotary Laser Level – Grl 600 Hv (0601061F40)

SKU: 0601061F40


The Bosch GRL 600 CHV saves times with dual-slope setting – extend the range of applications with the digital dial-in of grade (X and/or Y). This tool is compatible with any Bosch 18V battery up to 8.0Ah and has run time up to 60 hours with ProCore18V 4.0Ah battery.

in stock

Request Price Match

Please include full website address

This tool is tough for the jobsite with IP 68 rating against dust and water (including battery compartment) and 2m drop rating.

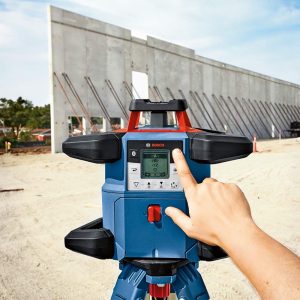

Operation is made easier with a screen on main unit to visualize and simplify main functions including dual-slope setting. The tool is Bluetooth connected for single-operator use and includes the UCAL function for simple calibration and precise results via the Levelling Remote App.

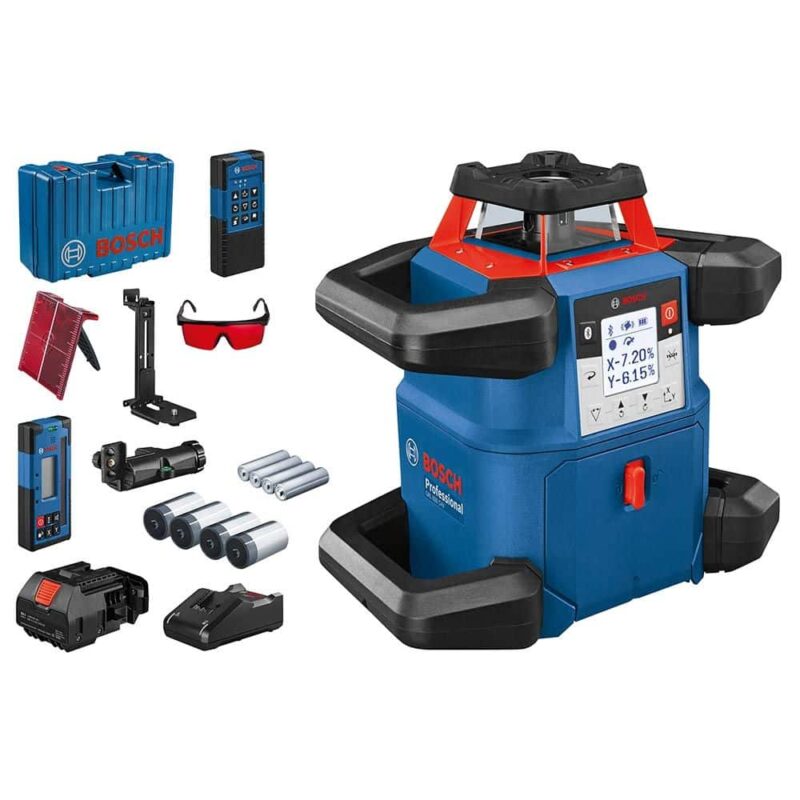

Includes: GRL 600 CHV Rotary Laser, LR 60 Laser Receiver with RB 60 receiver bracket, RC 6 Remote Control, WM 6 Wall Mount, GAL 18V-40 LI battery charger,  BA 1 Battery Adapter, (4) D Batteries, (4) AA Batteries, red laser glasses, red target plate, tripod carrying straps, carrying case

  • Dual-slope setting with digital dial-in of grade (X and/or Y)
  • IP68 rating plus 2m drop rating
  • Bluetooth connectivity with additional features in the Levelling Remote App
  • Simple and precise user calibration via the app
  • Intuitive and easy-to-understand screen and functions on tool
  • Long battery life – Up to 60 hours with ProCore 18V 4.0Ah Battery


Get accurate results and save time with the new GRL 600 CHV – perfect for heavy-duty jobs

  • Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water
  • Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time
  • Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)

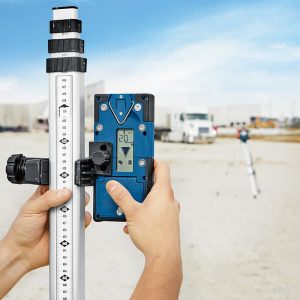

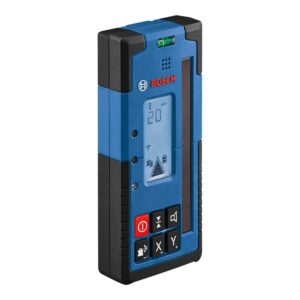

The GRL 600 CHV also features a high-quality receiver with a 125-mm reception area, a dual-sided display, and an offset feature in millimetres. Calibrating the tool is quick and easy – follow the step-by-step instructions via the intuitive app to save time and resources and ensure accurate results on every job. Use the handy ‘mask mode’ available in the app to avoid reflection and interference with other devices on the jobsite.


Package Includes:

  • Laser receiver LR 60 Professional0 601 069 P00
  • Receiver bracket RB 60 Professional
  • Remote control RC 6 Professional
  • Quick charger GAL 18V-40 Professional1 600 A01 9RN
  • Battery adapter BA 1 Professional
  • Wall mount WM 6 Professional
  • 4 x 1.5 V LR20 battery (D)
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
  • Laser viewing glasses (red) (spare part number 1 608 M00 05B)
  • Carrying case
0/5 (0 Reviews)
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50°C
Storage temperature -20 – 50°C
Laser class 2
Working range with receiver up to 600 m (Diameter)
Working range without receiver up to 60 m (Diameter)
Accuracy ± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Self-levelling range ±8.5% (±5°)
Dust and splash protection IP 68
Rotation speed 150/300/600 min−1
Power supply 18 V Li-ion battery, 4 x D cell batteries
Operating time (max.) 60 h, 70 h
Tripod thread 2 x 5/8″
Colour of laser line red
Projection 1 x 360° line
Compatible laser receivers LR 60
Weight with 4.0 Ah battery 4.3 kg
Weight with alkaline batteries 4.6 kg
