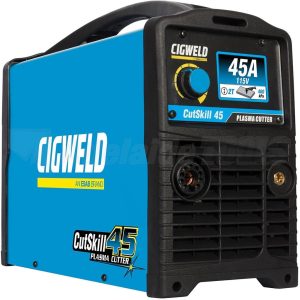

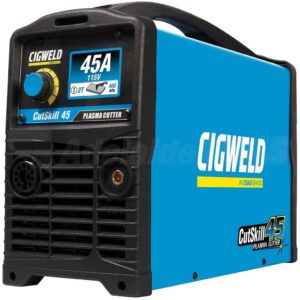

Cigweld Cutskill 45 Plasma Cutter + Torch, Cutting Machine, 15a System 1160140

SKU: 1160140

$1,397.95

– 2.8″ LCD screen
– Single control knob
– Internal regulator
– Enclosure rated to IP23S
– Inline Air Filter

in stock

Request Price Match

Please include full website address
null

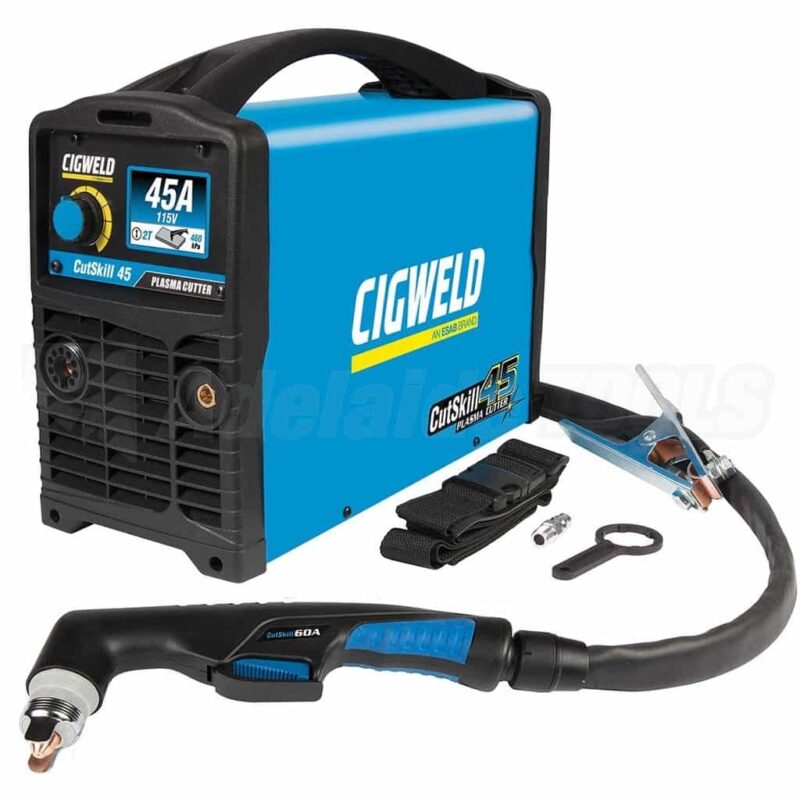

What You Get:
1 x CutSkill 45 Plasma Cutter, 1160140
1 x CutSkill 60A Plasma Torch
1 x Work Cable and Clamp
1 x Wrench for Air Filter
1 x 1/4″ Nitto Air Line Connector
1 x Shoulder Strap
1 x Operating Manual



Features
  • 2.8″ LCD screen displays all cutting setting, input voltage and input air pressure.
  • Single control Knob adjusts all cutting settings.
  • Moisture in your air compressor can reduce the lifespan of the Plasma Torch consumables. The CutSkill inbuilt air filter removes this problem – The air filter can be purged at any time by using the purging valve and is also removable for cleaning. It is housed in a concave inset in order to prevent damage.
  • The regulator is internal and air through the torch is managed automatically by the plasma unit. This removes the need to adjust air pressure for individual cutting requirements.
  • Both Plasma CutSkill machines come complete with a detachable 60 amp torch with 5 meter lead designed specifically for the CutSkill plasma cutting range. The torch includes a safety latch in order to prevent risk of accidental arc.
  • Inline Air Filter – designed to prevent all moisture, plus oil and dirt down to 0.85 microns from passing through your air line to the plasma unit. This offers extra protection in addition to the inbuilt air filter located in the plasma unit itself.
  • Fully compliant to AS 60974.1-2006. Enclosure rated to IP23S.
  • Recommended air compressor required: 800kPa,12 CFM.
0/5 (0 Reviews)
Specifications:
Brand:Cigweld
MPN:1160140
Barcode:9310574065574
Certification:AS 60974.1-2006
LCD Screen:2.8”
Mild Steel Clean Cut:16mm
Mild Steel Severance:24mm
Stainless Steel Clean Cut:12mm
Aluminium Clean Cut:10mm
Number of Phases:Single Phase
Supply Plug:15amp
Generator Required:9 kVa
Duty Cycle:45A @ 35% Weight:11.8kg
Input Air Required:730 kPa, 110 LPM
Warranty:3 Year Limited Warranty
