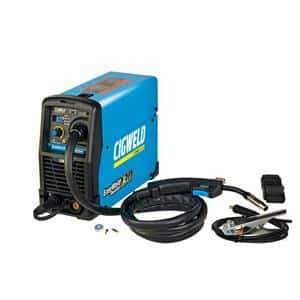

Cigweld Easyweld 130 Mig Welder + Torch, Smart Quick Set, Easy Weld W1201130

SKU: W1201130

$455.00

  • Easy-To-Use Small Inverter MIG Welder
  • 30/240V X 10A Power
  • For Most Metals Including Mild Steel, Stainless Steel, Aluminum And Bronze
  • Welds Metals From 0.6mm Up To 6mm
  • QuickSet feature enables you to set the plate thickness
in stock

Request Price Match

Please include full website address
null
What You Get:
1 x Cigweld EasyWeld 130 MIG Welder, W1201130
1 x CMG13DL MIG Gun 3m- Hardwired
1 x Work Clamp with 2.5m Lead
2 x Feed Rolls: 0.8/0.9mm Gasless(Fitted),0.6/0.8mm Solid Wires
1 x Contact Tips: 0.6mm, 0.8mm (Fitted), 0.9mm
1 x Shoulder Strap
1 x Operating Manual



Features:
  • The EasyWeld 130 is the most modern, easy-to-use small inverter MIG Welder designed to take away the guesswork when trying to decide what parameters should be set to weld differing thicknesses of metal.
  • Plate Thickness setting allows you to set up in no time. There is no guessing the welding parameters. The QuickSet feature enables you to set the plate thickness you are welding.
  • The EasyWeld 130 delivers a maximum output of 130Amps DC, and welds metals from 0.6mm up to 6mm.
  • In QuickSet mode the EasyWeld 130 is limited to 3mm thickness. To weld higher thicknesses up to 6mm, settings can be manually adjusted to maximum Wire Feed Speed and Voltage which delivers exceptional welding results on larger metal joints.
  • CIGWELD have specially configured this machine to be able to produce great welding results from domestic household 230/240V x 10A power.
  • You can weld most metals including Mild Steel, Stainless Steel, Aluminum and Bronze.
  • Suitable for MIG with Shielding Gas and MIG Gasless Welding.
  • Welds most metals including Mild Steel, Stainless Steel, Aluminum and Bronze.
  • The Electronic QuickSet provides accurate adjustment of the welding parameters reducing the amount of time wasted in the guessing settings!
  • The EasyWeld 130 MIG machine is supplied with a quality MIG Gun rated to handle in excess of the maximum output of the machine.
3.5/5 (8 Reviews)
Specifications:
Brand: Cigweld
Part Number: W1201130
Certification: AS 60974.1:2020
Power Input Single-Phase: 230V/240V +/-15%
Supply Frequency: 50/60 Hz
Supply Lead and Plug: 10 Amp
Rated Input Current I1eff:
9.4A – 240V
10A -230V
Rated Input Current I1max:
21A – 240V
22A – 230V
Amperage Range: 30 – 130A
Recommended Welding Thickness Range: 0.6mm – 6mm
Duty Cycle:
130Amps @ 20%
75Amps @ 60%
58Amps @ 100%
Nominal DC Open Circuit Voltage:78V
Generator Ratings:6.0 kVA (at 0.8 Power Factor) at Max Amps
Weight:7.6Kg
Size:L:358 x W:149 x H:273mm
Voltage Range:15.5 – 20.5V
IP Rating:IP21S
Warranty: 1 year
