CIGWELD XF19 BlueVenom Mig Tig Stick MMA Welder + 3m Torch + Regulator W1400190

SKU: W1400190

$899.00

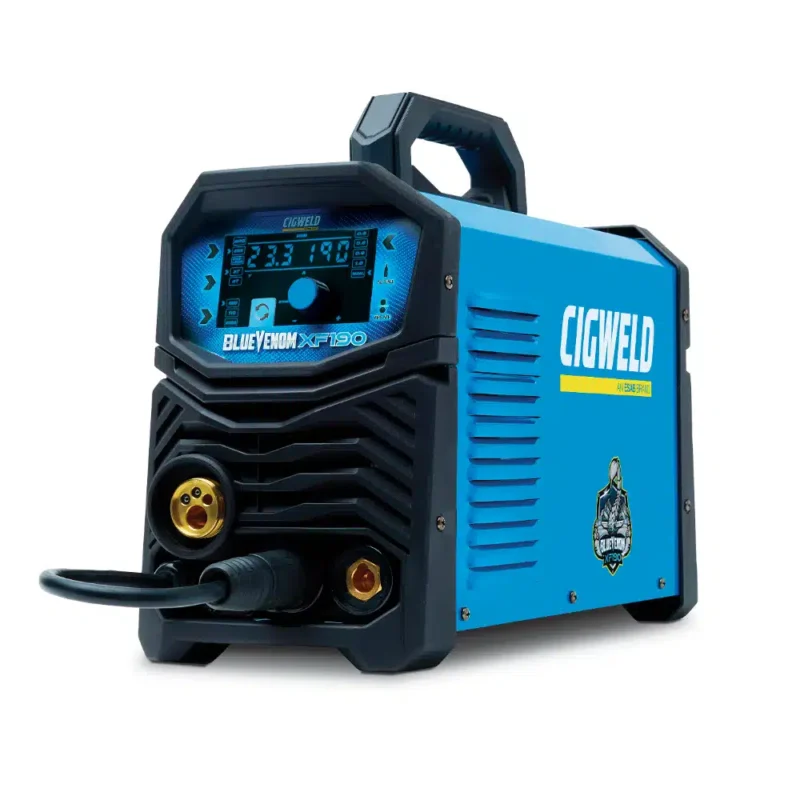

The BlueVENOM XF190 is the perfect solution for light fabrication, maintenance, and repairs, as well as for DIY projects around the home, workshop, worksite, or farm. It offers exceptional quality, safety, and performance without any compromises. With avid welders in mind, CIGWELD has introduced the “Opti-Start” feature, which enables users to customize their starting arc characteristics using Soft and Hard Start controls. Additionally, the XF190 is 30% smaller than comparable machines in its class and weighs only 9.5kg, making it highly portable. It is a 3-in-1 multi-process welding machine that includes QuickSet Plate Thickness selection, eliminating the need for guesswork during welding tasks.

in stock

Request Price Match

Please include full website address
null

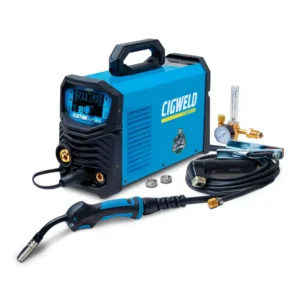

What You Get:

CIGWELD XF19 BlueVenom Mig Tig Stick MMA Welder includes:

  • BlueVENOM XF190 Welder
  • CMGBZ15E3 MIG Gun 3m with Euro quick connector
  • Work Clamp with 3m Lead
  • Twist Lock Electrode Holder with 3m Lead
  • 2 x Feed Rolls:
    8/0.9mm Gasless,
    0.8/0.9mm Solid Wires (Fitted)
  • 2m Argon Gas Hose and Gas Regulator
  • Includes Nylon Inlet Guide for use on Soft Alloy Wires
  • Operating Manual

Features:

  • The BlueVENOM XF190 synergic 3-in-1 welding inverter with MIG plate thickness selection is the perfect solution for light fabrication, maintenance and repairs or for DIY around the home, workshop, worksite, or farm without compromising on quality, safety and performance
  • With the avid welder in mind, CIGWELD has introduced “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls. 2 x Roll All-Driven (top & bottom) Wire Drive system

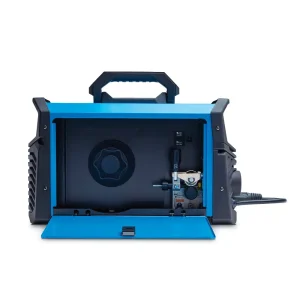

  • MIG Adjustable Wire Burnback & Inductance. MIG Adjustable Soft & Hard Start (Opti-Start). MIG Wire Inch button. MIG Gas Purge Button. MIG Side door wire installation, side loader. MIG Anti de-spooling safety feature. MIG Spool Gun Compatible
  • STICK with Voltage Reduction Device (VRD) built-in for Safe Welding. STICK Adjustable Hot Start. STICK Adjustable Arc Force. Anti-Stick and thermal overload protection
  • TIG Foot Control Compatible. TIG Dial Remote Torch Compatible
    This setting allows you to set up in a flash! There is no guessing the welding Use the QuickSet feature to set the machine to the correct plate thickness you are welding
  • Bright Blue LED screen great for outdoor viewing. Fine-tuning of Pre-Set Wire Speed & Volts. Full control over manual settings. Welding wire size selection. Recommended MIG & TIG welding thickness range 6mm – 10mm. Recommended STICK welding thickness range 6mm – 12mm.  You can weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze
  • QuickSet, is simple to set & weld. Spool Gun compatible, great for Aluminium (sold separately). Suitable for 100mm and 200mm Diameter Spools. MIG Gasless and MIG Gas Shielded. Factory Settings reset feature. CIGWELD have specially configured this machine to be able to produce great welding results from domestic household 230V/240V x 10A power
0/5 (0 Reviews)

Brand: Cigweld
MPN: W1400190
Model: XF190
Power Supply Voltage: Single-Phase 230V/240V +/- 15%
Nominal Supply Frequency: 50/60Hz
Supply Lead and Plug supplied: 10 Amp
Minimum Single Phase Generator Recommendation:
10kVA (at 0.8 Power factor) at Max Amps
Aperage Range (MIG): 30-190A
Voltage Range (MIG): 15.5 – 26.0V
MIG (HMAW) Duty Cycle at 40ºC, 10 minutes:
185 Amps at 9%
72 Amps at 60%
56 Amps at 100%
STICK(MMAW) Duty Cycle at 40ºC, 10 minutes:
160 Amps at 10%
50 Amps at 60%
50 Amps at 100%
TIG (GTAW) Duty Cycle at 40ºC, 10 minutes:
190 Amps at 10%
77 Amps at 60%
60 Amps at 100%
Nominal DC Open Circuit Voltage in MIG Mode: 52V
Open Circut Voltage (VRD On) STICK mode: <35V
Weight of Power Source: 9.5kg
Power Source Dimensions: 465L x 190W x 340H mm
Protection Class: IP 21S
Weight of full package: 16.6kg
Warranty:
2 Year Warranty Covered By CIGWELD
+ 6 Months Extra Warranty ONLY When Registered at Cigweld Website
Australian Standard: AS60974.1:2020
