Holemaker Air 35 Low Profile Annular Drill Pneumatic Magnetic Base HMP35AD-ATEX

SKU: HMP35AD-ATEX

$9,499.95

  • Holemaker Air 35mm Angle Drill (HMP35AD-ATEX)
  • 3/4″ Weldon Shank cutters
  • Lowest-height pneumatic magnetic drill
  • Combination of pneumatic drive and permanent magnetic base
  • 12mm twist drill capacity
  • Supplied In Metal Carry Case
in stock

Request Price Match

Please include full website address
null
What You Get:

HOLEMAKER AIR 35 Drill Includes:

1 x Holemaker HMP35AD Machine, HMP35AD-ATEX
1 x Metal Carry Case
1 x Hex Wrench 4
1 x Feed Handle
1 x Coolant Bottle Assembly
Operators Manual



Features:

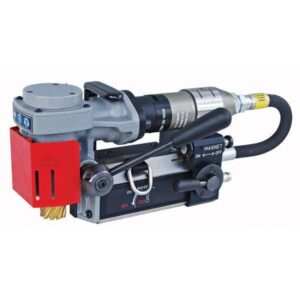

The Holemaker Air 35mm Angle Drill (HMP35AD-ATEX) is a small portable pneumatic drilling machine that allows holes to be drilled up to 35mm diameter in places with restricted space, using standard 3/4″ Weldon Shank cutters.
This machine is the lowest-height pneumatic magnetic drill currently available on the world market.
The combination of pneumatic drive and permanent magnetic base eliminates the need for electric power supply thus making this machine an ideal solution in many hazardous environments such as oil drilling platforms, mining industry, shipbuilding, or petrochemical industry.
The compressed-air motor used in the HMP35AD-ATEX drill is certified ATEX II2G/ D C IIC T6; T4 and meets the requirements for use in areas with a risk of explosion.
12mm twist drill capacity using Weldon Shank twist drill bits.
Through Spindle Coolant System.
Supplied In Metal Carry Case With Cutter Guard & Safety Strap.
A compact and portable pneumatic drilling machine enables you to drill holes up to 35mm diameter in tight spaces when you use standard 3/4 Weldon shank cutters.
Specifications:
Brand: Holemaker
Part Number: HMP35AD-ATEX
Operating Pressure: 85 PSI
Air Consumption: 1400 l/min
Motor Power: 800Watt
Arbor Size: 3/4” Weldon /19.05 mm/
Hole Capacity with Holemaker Cutter: 35mm (1.38 in)
Maximum Drilling Depth: 25mm (0.98 in)
Stroke: 39mm (1.54 in)
Magnet Force on 25mm Plate: 6,500 N
Free Speed: 500 rpm
Load Speed: 240 rpm

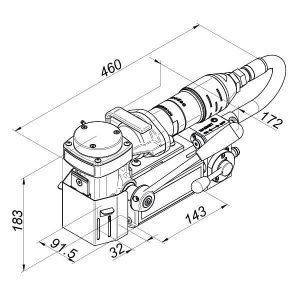

Magnetic Base: 80x80x143 mm
Weight: 14kg
Noise Level: Above 70 dB
Working Temperature Range: -20°C /+ 40°C
