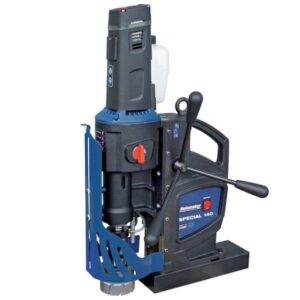

Holemaker Special 140 Magnetic Base 240V Hole Annular Cutter Steel Drilling, 4MT

SKU: HMSPECIAL140

$6,349.95

  • European-made machine
  • Forward & reverse work modes
  • Variable speed adjustment
  • Italian-made motor
  • Intelligent speed control system
  • Electronic clutch
in stock

Request Price Match

Please include full website address
null
What You Get:

HOLEMAKER Special 140  Drill (HMSPECIAL140) Includes:

1 x Drilling machine
1 x Metal box
3 x Handle
1 x MT4 arbor with 19mm (3/4″) Weldon tool holder
1 x Safety Strap
1 x Cooling system
1 x Protective spring for cooling hose
1 x MT3 drift
1 x 2.5mm hex wrench
1 x 5mm hex wrench
1 x 5mm hex wrench with a handle
1 x 8m combination wrench
1 x Tool can
1 x Locking connector (only in 115 V version)
Operator’s Manual



Features:
A highly versatile European-made machine for professional drilling and tapping applications.
The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M42 of through holes and M33 blind holes.
New generation Italian-made motor.
The intelligent speed control system maintains stable speed regardless of load changes.
Electronic Variable Speed Control.
Electronic clutch.
Overload and Overheat protection.
The tilt sensor stops the motor in cases of machines breaks away.
360-degree visual monitoring system indicates the current condition of the drill and gives safety and diagnostic information e.g. worn brushes.
Intuitive control panel at top of the drill.
Supplied in a metal carry case with cutter guard & safety strap.
Specifications:
Brand: Holemaker
Part Number: HMSPECIAL140
Power: 2300W
Spindle Shank: MT4
Stroke: 260 mm (10.2″)
Tool Holder: 19 mm (3/4″) Weldon
Maximum Drilling Diameter: 140 mm with an annular cutter
Maximum Drilling Diameter: 47 mm with a twist drill bit
Maximum Drilling Depth: 110 mm with an annular cutter
Maximum Tap Size: M42 (1-5/8″)
Clamping force: 25,000 N
Voltage: 1~ 220–240 V(50–60 Hz), 1~ 110–120 V(50–60 Hz)
Electromagnetic Base Dimensions: 105 mm × 315 mm × 50 mm (4.1″ × 12.4″ × 2″)
Rotational Speed Under Load: 55–85 rpm, 100–150 rpm, 200–300 rpm, 350–520 rpm
Minimum Workpiece Thickness: 10 mm (0.4″)
Noise Level: More than 85 dB
Weight: 31 kg (68 lbs)
