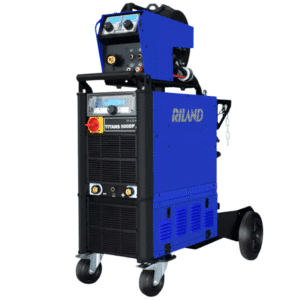

RILAND TITAN S 500 DP Water Cooled
The TITAN 500 DP Has The Ability To Support Up To A 35m Interconnecting Cable. Where Most Welders Stop At 15m, The TITAN BOOST System Allows Extremely Minimal Voltage Drop Over Such A Great Distance.
Perfect For Bringing 3 Phase Power, To Vertical Job Sites, Or Setting Up A Pollutant Free Location For The Power Source.
The TITAN 500 DP In Conventional Welding Mode (Manual), Allows The Simplest Control Over The Machine’s Performance. Where The User Only Has Access To The Voltage (Power) And The Wire Speed. Minimising The Possibility Of Confusion. However, In Advanced Mode, The User Has The Ability To Adjust Pulse Frequency, Pre-Gas, Post Gas, Hot Start, Cold Start, Up Slope Time, Down Slop Time, Crater Current, And Inductance!
The TITAN 500 DP Was Originally Developed As A 600amp Welder, But To Increase Accessibility To The End User, There Is The Option To Down Spec Your Choice To 400amps Or, If You Need More Power For A Specific Job, Upgrade To 600amps With An Over The Air Update.
Increased Power And Features Go Hand In Hand With Increased Protection Devices. And The TITAN 500DP Has Many. Including VRD, Automatic Under AND Over Voltage Protection, Automatic Phase Loss Protection, Automatic Over AND Under Frequency (Dirty Power) Protection, And As An Industry First, EN 60974-10 Protection Against Electromagnetic Pollution By The Environment
Perfect For Busy Workshops Or Job Sites With Many High Draw Equipment Straining The Power Supply
You Need A Welder To Work For You, Not Everyone Else. Which Is Why The TITAN 500DP Allows Many Options. Such As Optional, Built In Water Cooling, Extra-Long Interconnecting Cables, Double Or Double Combined Wire Feeder Set Ups, And Different Power Options Based On Needs And Budget
The TITAN 500DP Gets All The Little Things Right. From The Extra-Large SOLID Rubber Wheels, Allowing It Glide Across The Factory Floor, To The Full Sized 4WD Forward And Reverse Wire Drive System, Allowing For Up To 2mm Thick Filler Wire.
The TITAN 500DP Is The Machine Of The Future, It Can Be Updated With New Software Custom Designed For Your Work. It Can Support An Automatic Welding Carriage, And Carries The Technology To Allow A Digital MIG Gun, Which Will Enable You To Change The Wire Speed And Amperage Right From The Gun, Much Like TIG.
What You Get:
| 5m – 35mm Interconnecting control cable |
| Water cooler pump built into trolley (Can be removed to reduce cost) |
| 3m Riland 501D Water Cooled MIG Gun |
| 500amp earth lead |
| Electrode Holder Lead set |
| 45L/M Dual Guage Argon Regulator |
FEATURES:
| TITANS has an extraordinary design concept, not only in modular design, but also in internal software upgrades. The HaSKey, embedded in the main power supply of TITANS is the key to upgrade it. Through the software upgrade, the output current ranges can be upgraded from 400A to 500A, or to 600A, or welding process can be upgraded from ordinary MIG to pulse MIG, ect. |
| TITANS is a platform, which is a new welding power supply solution which is different from the traditional welding power supply in current market. |
| The design concept of TITANS is to become an omni-directional welding power supply, subverting the concept of fixed power supply and fixed function of traditional welding machine. |
| TITANS uses software upgrade and code development to turn on the function of welding machine and realize the intelligent and customer personalized design of welding machine |
| Automatic low voltage / high voltage protection: (Range: 380-400-415V/ 460V, -15~+10%) |
| Automatic phase-loss protection: (If phase-loss lasts for over 20ms, the machine will stop, to protect the circuit board.) |
| Automatic over-frequency protection (Dirty Power Protection): When the input power exceeds the 46-64Hz range, the machine will stop to protect the circuit board. |
| Automatic standby when welder is not in use: Reduces power usage to only 30W when the machine is not used for more than 5 minutes. |
| Anti stick function for MMA welding: (when the short circuit time greater than 0.3s.) |
| Full digital double Pulse MIG Machine can weld Various Plate such as aluminium alloy, copper alloy, stainless steel etc. |
| Multi-Process include MIG/MAG, Lift TIG, MMA and Carbon Gouge. |
| Double Pulse MIG Commit to perfect aluminium welding. |
| Built-im expert data, synerge adjustment, fine droplet transfer. |
| Module design idea make welding concise and flexible by your own Demand. |
| Spool Gun Compatible. |
