Unimig Razor 200 Pulse Mig Tig Stick Bundle – Welder + Gloves +consumables + Wire, U11003k

SKU: U11003K

$2,589.95 $2,460.45

  • Single & double MIG Pulse welding
  • Plus DM26 Torch consumable starter kit + gloves + wire
  • 4 Geared wire drive roller
  • High-frequency DC TIG
  • Arc Force function
  • The large touch screen display is clear, with an easy-to-navigate interface
  • Crater Fill feature
in stock

Request Price Match

Please include full website address
null

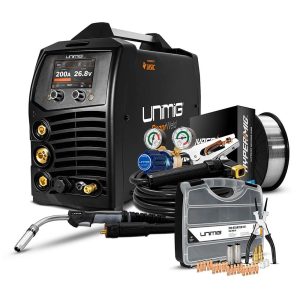

WHAT YOU GET:
1 x Razor 200 Double Pulse MIG/TIG/STICK Welder (with Life Time After Sales Machine Support)


*Electroweld will supply and fit a 15amp plug and pre-program it so it is ready to use straight out of the box for 5356 Aluminum*

1 x DM26 Torch Consumable Starter Kit
2kg x UNIMIG 1.2mm 5356 Aluminium MIG Wire
1 x Pair Rogue 480mm Welding Gloves
1 x 3m DM26 Digital MIG Torch Fitted with Carbon-Polyamide Liner
1 x 3m Twist Lock Electrode Holder
1 x 3m 200Amp Earth Clamp & Lead
1 x Twin Gauge Argon Regulator
1 x 1.8m Gas Hose Complete with Fittings
1 x Operating Manual
FEATURES:
Single & double MIG Pulse welding reduces the heat and minimises spatter, without compromising penetration, so it’s perfect for thin and soft materials like aluminium.
5″ LCD touch screen display means choosing your weld parameters or changing your settings mid-weld has never been easier. The large touch screen display is clear, with an easy-to-navigate interface. You won’t even need a manual to work it out.
Hot Starting a MIG weld has never been so smooth with the Hot Start function. Turn it on to give you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and making welding on thicker materials and aluminium easier.
Finishing a weld has never been so easy with the Crater Fill feature. Turning the Crater Fill function on will ramp your welding current and voltage down at the end of a MIG or TIG weld, so you can fill it in at lower power, eliminating craters and pinholes. End your welds as strong as they started.
The high-frequency DC TIG welding mode comes with a full set of adjustable parameters, like pre- and post-flow, up and down slopes, as well as all things pulse. Everything you need is right at your fingertips.
You’ll be able to STICK weld anything, including cellulosic electrodes, plus with the addition of Anti Stick, you’ll never struggle to strike an arc again.
With 4 Geared Wire Drive rollers, you will get a more consistent and smoother wire feeding experience. The internal housing also features storage space for additional rollers, so they’re always in reach. It also comes with an internal spool light, for max visibility in any lighting.
The Arc Force function helps to keep the arc stabilised throughout the weld, so it won’t cut out and stops the electrode from sticking.
Power Limit works to keep the amperage constant throughout the weld by preventing the voltage from exceeding the set value.
The RAZOR 200 PULSE can be connected to a generator. We recommend one with an 11kVa.
Increase or decrease your arc length while in the synergic and pulse MIG modes to suit your weld style.
Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.
The RAZOR 200 PULSE is rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical.
SPECIFICATIONS:
Part Number: U11003K
Primary Input Voltage: 240V Single Phase
Supply Plug: 15A (We will fit the plug)
Ieff AMPS: 14.9
Rated Output: 40A/16V – 200A/24V
Minimum Generator (KVA): 11.0
Dinse Connector: 35/50
MIG Welding Current Range: 40-200A
MIG Duty Cycle @40ºC: 15% at 200A, 60% at 101A, 100% at 78A
MIG Wire Size Range: 1-10mm
MIG Welding Thickness Range: 0.6 – 1.2mm
MIG Wire Spool Size: 1kg – 5kg
TIG Welding Current Range: 5-200A
TIG Duty Cycle @40ºC: 20% at 200A, 60% at 116A, 100% at 90A
TIG Welding Thickness Range: 1-8mm
Drive Roller Size: 30/22
Stick Welding Current Range: 20-180A
Stick Duty Cycle @40ºC: 15% at 180A, 60% at 91A, 100% at 70A
Stick Wire Size Range: 2-12mm
Stick Electrode Range: 2.5-4.0mm
Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Dimensions(Mm)(LxWxH): 605mm x 230mm x 400mm
Weight: 17kg
Standard: AS/NZ60974-1
Warranty: 2 Year
