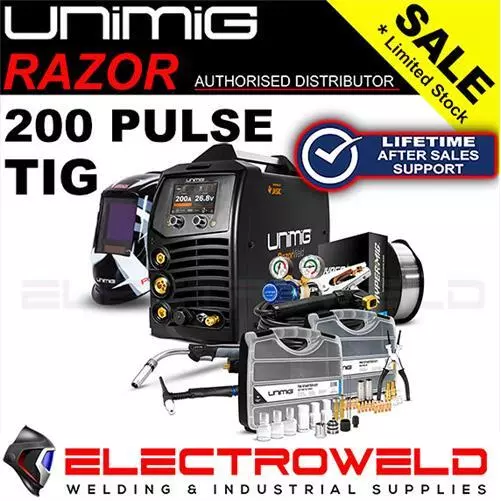

UNIMIG Razor 200 Pulse Mig Tig Welder + T2 Torch + Helmet + Consumables, U11003K

SKU: PK11080

$2,995.00

Single & double MIG Pulse welding reduces the heat and minimises spatter, without compromising penetration, so it is perfect for thin and soft materials like aluminium. 5″ LCD touchscreen display means choosing your weld parameters or changing your settings mid-weld has never been easier. The large touchscreen display is clear, with an easy-to-navigate interface. You won’t even need a manual to work it out. Hot Starting a MIG weld has never been so smooth with the Hot Start function. Turn it on to give you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and making welding on thicker materials and aluminium easier.

in stock

Request Price Match

Please include full website address
null
What You Get:
1 x Razor 200 Double Pulse MIG/TIG/STICK Welder (with Life Time After Sales Machine Support)
*Electroweld will supply and fit a 15amp plug and pre-program it so it is ready to use straight out of the box for 5356 Aluminum*
1 x RWX8000 Automatic Welding Helmet (UMCWH)
1 x T2 TIG Torch (UMT24M)
1 x T2/T3W Consumable Starter Kit (U42005) includes:
1 x Short Back Cap (UMCT2SBC)
1 x Quartz Cup Size 6 (UMCT2006)
1 x Quartz Cup Size 8 (UMCT2008)
1 x Quartz Cup Size 10 (UMCT2010)
1 x 1.6mm Gas Lens (UMCT2GL16)
1 x 2.4mm Gas Lens (UMCT2GL24)
1 x Head Gasket (UMCT2HG)
1 x Heat Zone Isolator (UMCT2SN)
1 x Ceramic Cup Size 7 (UMCT2CC07)
1 x Ceramic Cup Size 8 (UMCT2CC08)
1 x Ceramic Cup Size 9 (UMCT2CC09)
1 x Quartz Zone Isolator
2 x Bare Earth Tungsten Electrode 1.6mm
2 x Bare Earth Tungsten Electrode 2.4mm
1 x 3m DM26 Digital MIG Torch Fitted with Carbon-Polyamide Liner
1 x 3m Twist Lock Electrode Holder
1 x 3m 200Amp Earth Clamp & Lead
1 x Twin Gauge Argon Regulator
1 x 1.8m Gas Hose Complete with Fittings
1 x Operating Manual
Features:
Single & double MIG Pulse welding reduces the heat and minimises spatter, without compromising penetration, so its perfect for thin and soft materials like aluminium.
5″ LCD touch screen display means choosing your weld parameters or changing your settings mid weld has never been easier. The large touch screen display is clear, with an easy to navigate interface. You won’t even need a manual to work it out.
Hot Starting a MIG weld has never been so smooth with the Hot Start function. Turn it on to give you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and making welding on thicker materials and aluminium easier.
Finishing a weld has never been so easy with the Crater Fill feature. Turning the Crater Fill function on will ramp your welding current and voltage down at the end of a MIG or TIG weld, so you can fill it in at a lower power, eliminating craters and pinholes. End your welds as strong as they started.
The high frequency DC TIG welding mode comes with a full set of adjustable parameters, like pre- and post-flow, up and down slopes, as well as all things pulse. Everything you need, right at your fingertips.
You’ll be able to STICK weld anything, including cellulosic electrodes, plus with the addition of Anti Stick, you’ll never struggle to strike an arc again.
4 Geared Wire Drive rollers, you will get a more consistent and smoother wire feeding experience. The internal housing also features storage space for additional rollers, so they’re always in reach. It also comes with an internal spool light, for max visibility in any lighting.
The Arc Force function helps to keep the arc stabilised throughout the weld, so it won’t cut out, and stops the electrode from sticking.
Power Limit works to keep the amperage constant throughout the weld by preventing the voltage from exceeding the set value.
The RAZOR 200 PULSE can be connected to a generator. We recommend one with an 11kVa.
Increase or decrease your arc length while in the synergic and pulse MIG modes to suit your weld style.
Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.
The RAZOR 200 PULSE is rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical.
Features T2 Torch
The ARC TORCHOLOGY T2 TIG Torch has been designed for maximum performance and longer consumable lifecycles – Up to 20X longer consumable life.
190A maximum output.
Thanks to exclusive torch technologies, this torch boasts a 30% better power to weight ratio compared to standard UNIMIG torches – more power in a lightweight body
Force Cool Technology – A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life..
Heat Zone Isolation Technology – Transferred heat from the ceramic cup is isolated by a unique external barrier resulting in cooler running torches with increased power to weight performance ratios..
Tungsten Release System – Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.
Arc Torchology Torches come with a flexible torch head as standard. Simply bend your torch head into any angle you need, allowing you to access tight and cramped spaces.
2 Year Warranty
Features RWX8000 Helmet
This helmet features a 1/1/1/1 classification, the highest possible classification for optical clarity.
4 Arc Sensors maintain constant sensing and automatically switches the helmet from light to dark and back again
3 x Memory Functions – Store different shade, sensitivity and delay options into three easily accessible pre-sets.
Enhanced Viewing Area offers a larger viewing area for the operator.
True Colour High Definition Filter Technology greatly improves the optics allowing the user to see a full spectrum of colours. Also Assists with alleviating eye fatigue making it safer for extended periods of welding
Grind Mode allows the operator to switch the helmet from the welding mode into a fixed shade for grinding. This function removes the need for the operator to change visors and to simply use the welding helmet for grinding when required.
Shade Control Automatic Welding Lens allows the operator to switch between variable welding shades from 5-9 and 9-13.
Permanent complete protection against UV/IR even in transparent condition. The UV/IR protection level is DIN15 all the time. Din standard approval guarantees maximum eye protection during welding.
Dark shade can be adjusted from shade 5-9 and shade 9-13 this makes it ideal for Gas cutting, Plasma cutting, Low amp TIG operation and MIG welding.
The unique shape design helps channel welding fumes away from the helmet and face area.
Automatic sleep mode shuts LED off when helmet is placed into its storage bag or darkness for battery conservation.
The front cover lens provided is manufactured of high polymer materials, is wear-resistant, thermostable, and is resistant to spatter.
0/5 (0 Reviews)
Part Number: U11003K
Primary Input Voltage: 240V Single Phase
Supply Plug: 15A (We will fit the plug)
ieff AMPS: 14.9
Rated Output: 40A/16V – 200A/24V
Minimum Generator (kVA): 11.0
Dinse Connector: 35/50
MIG Welding Current Range: 40-200A
MIG Duty Cycle @40ºC: 15% at 200A, 60% at 101A, 100% at 78A
MIG Wire Size Range: 1-10mm
MIG Welding Thickness Range: 0.6 – 1.2mm
MIG Wire Spool Size: 1kg – 5kg
TIG Welding Current Range: 5-200A
TIG Duty Cycle @40ºC: 20% at 200A, 60% at 116A, 100% at 90A
TIG Welding Thickness Range: 1-8mm
Drive Roller Size: 30/22
Stick Welding Current Range: 20-180A
Stick Duty Cycle @40ºC: 15% at 180A, 60% at 91A, 100% at 70A
Stick Wire Size Range: 2-12mm
Stick Electrode Range: 2.5-4.0mm
Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Dimensions(mm)(LxWxH): 605mm x 230mm x 400mm
Weight: 17kg
Standard: AS/NZ60974-1
Warranty: 2 Year
Specifications Torch
Part Number: UMT24ME
Cooling Method: Air Cooled
Duty Cycle – DC: 35% @ 190A
Duty Cycle – AC: 35% @ 135A
Wire Size: 1.0-4.0mm
Dinse Connector: 35/50
Pin Connection: Euro Connection
Lengths: 4 Metres
Standard: EN60974-7
Specifications Helmet
Brand: Unimig
Part Number: UMCWH
Filter Dimensions (mm): 114 x 133 x 9.5
View Size (mm): 100 x 83.4
Arc Sensors: 4
Classification: 1/1/1/1
Power Control: Fully Automatic
Light State: 4
Dark State: 5-9 / 9-13
UV/IR Protection: DIN15
Time from Light to Dark: 0.08ms
Time from Dark to Light:: 0.1-0.9s
Sensitivity Delay: Adjustable (1-5 for low-high)
Power Supply: Solar Cells & CR2450 Replaceable Battery
Shade Control: Yes
Grind Control: Yes
Standards: CE, ANSI , CSA, AS/NZS 1338.1 (Auto-Darkening), AS/NZS 1337.1 (High Impact)
Warranty: 2 Years

FREE DELIVERY CONDITIONS

Products labelled with the “Free Delivery” sticker will have N/A shipping charged to them on checkout, however, some are excluded. This includes items that are large & heavy, some clearance items, or items classed as dangerous goods. Some of these items will incur a delivery fee after the purchase has been made and some may not be available for delivery at all. Remote areas outside of Sydney MAY be excluded from free shipping, you will be contacted prior to delivery to confirm shipping charges if necessary. Electroweld reserve the right to change or withdraw free delivery at any time.

Store Pickup ($0)

You can place an order online and pay either using your card or PayPal account. If this item is in stock, you will be able to collect it instantly, to check stock once you have purchased an item please call (02)9708 6660

Stock is not guaranteed until we have reserved stock for you under your order number.

Please wait for a confirmation email of the order being ‘ready for pickup’ before coming in-store to pickup.

Please quote your order number when you come to the store.

Pickup time is during our business hours.

Orders are usually cancelled after 7 days if it has not been picked up or no form of communication or response has been received.

Standard Delivery – NSW wide (From $8.90)

This is usually a 1-2 day service. Outer NSW areas can take up to 5 days.

Someone must be present at the delivery address during business hours to receive & sign, if no one is available you must put a note in the order instructions along with a suggested time and date for delivery. Additional delivery charges may apply if this process is not followed.

Special instructions can be included in the comments of your order

For overweight items or addresses outside our delivery network, you will see “TBC” (To be calculated) where the delivery price was. You will still be able to make your purchase and a representative for Electroweld will contact you with a shipping quote. You are not obligated to accept this quote. If TBC is displayed, the normal 1-2 day service cannot be guaranteed and the ETA on delivery will be included in the shipping quote.

Guaranteed Same Day (Express) – Sydney Metro Region (From $13.10)

Within the Sydney Metro area only.

If an order is placed before 10 am, and the item is in stock, you are guaranteed to receive your product before COB (Close of business) that same day. If these conditions are followed and our delivery partner does not get your package to you within the specified time frame, Electroweld will credit any shipping cost incurred by you.

Funds need to be cleared and orders dispatched before 10:30 am for same-day arrival within business hours. (Paying by direct deposit may delay the process)

Someone must be present at the delivery address during business hours to receive & sign. If no one is available you must put a note in the order instructions along with a suggested time and date for delivery. Additional delivery charges may apply if this process is not followed.

Special instructions can be included in the comments of your order

For overweight items or addresses outside our delivery network, you will see “TBC” (To be calculated) where the delivery price was. You will still be able to make your purchase and a representative for Electroweld will contact you with a shipping quote. You are not obligated to accept this quote. If TBC is displayed, the normal same day service cannot be guaranteed and the ETA on delivery will be included in the shipping quote.

Interstate Delivery – Outside NSW (from $20.30)

For Interstate delivery, express post is not available unless specifically requested.

For overweight items or addresses outside our delivery network, you will see “TBC” (To be calculated) where the delivery price was. You will still be able to make your purchase and a representative for Electroweld will contact you with a shipping quote. You are not obligated to accept this quote. If TBC is displayed, the normal same day service cannot be guaranteed and the ETA on delivery will be included in the shipping quote.

Special instructions can be included in the comments of your order

International

International shipping costs vary greatly depending on the destination country, when TBC is displayed, we will contact you with a shipping quote and ETA.



Please Note: Shipping times may be extended if a payment is made via direct deposit. Please include the invoice number in the transaction title to expedite the process to get you your order ASAP!!

What You Get:
VIPER Multi 165 Welder Bundle includes:
1 x VIPER Multi 165 Mig Tig Stick Welder
1 x TOXIC Welding Helmet (UMTWH)
1 x ROGUE Heavy Duty Welding Gloves (UMWG8)
1 x Binzel Style 15 Consumable Starter Kit (UMSK15)
1 x 3m SB15 MIG Torch
1 x 3m Twist Lock Electrode Holder
1 x 300 Amp Earth Clamp & Lead
1 x Argon Flowmeter
1 x 2m Gas Hose Complete with fittings
1 x Operating Manual
Features:
The VIPER 165 is the ultimate multi-process welder for the DIY enthusiast.
 MIG, TIG or STICK, the VIPER does it all, and it’s ready to go anywhere you have a standard 10-amp outlet.
 Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.
 The VIPER 165 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.
 Welds Mild Steel, Stainless Steel, CastIron, Silicon Bronze, Aluminium, Copper.
 Compact & lightweight – With a size of only 513x206x391 mm and weighing only 9.8kg, you can take the VIPER Multi 165 with you anywhere.
 Synergic MIG control. Take the guesswork out of the setup.
 The machine also has other unique features such as Wire Drive, VRD, Wire inch, Inductance Control and Thermal Overload Protection.
 Gas and gasless MIG.
 Run mild steel, stainless steel & flux-cored mig wire.
 Plug in and play – The 10A plug can be used on any domestic outlet, so it’s perfect for the DIY home handyman or the professional welder looking to take it anywhere.
 With UNIMIG’s ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, efficiency, and reliability.
Features Toxic Helmet
2 Year Warranty
2 Arc Sensors – Maintain constant sensing and automatically switches the helmet from light to dark and back again.
Enhanced Viewing Area offers a larger viewing area for the operator.
True Colour High Definition Filter Technology greatly improves the optics allowing the user to see a full spectrum of colours. Also Assists with alleviating eye fatigue making it safer for extended periods of welding
Grind Mode allows the operator to switch the helmet from the welding mode into a fixed shade for grinding. This function removes the need for the operator to change visors and to simply use the welding helmet for grinding when required.
Shade Control Automatic Welding Lens allows the operator to switch between variable welding shades 9-13.
Permanent complete protection against UV/IR even in transparent condition. The UV/IR protection level is DIN15 all the time. DIN standard approval guarantees maximum eye protection during welding.
Automatic Welding Lens allows the operator to switch between welding shades from shade 9 to shade 13.
The front cover lens provided is manufactured of high polymer materials, is wear-resistant, thermostable, and is resistant to spatter.
Lightweight Design makes wearing the welding helmet more comfortable for the operator.
Features Consumables Kit
Packaged in a sturdy carry case, consumable starter kits are the perfect companion to be bundled alongside machines. The kit contains all the essential consumables for a BINZEL 15 Style MIG Torch.
UNIMIG Binzel style contact tips are designed with a solid copper construction for increased conductivity and spatter resistance, this leaves you with a cleaner finish and improved life of your contact tip.
Binzel style contact tips are solid copper and alloy construction.
UNIMIG Nozzles are heavy duty and are not to be compared with cheap low grade nozzles others sellers are selling.
UNIMIG Tip holders are made of brass and securely lock the contact tip into place.
UNIMIG Binzel style nozzle springs help ensure the gas nozzle locks in place.
The UNIMIG MIG Welding Pliers have a simple spring action handle that ensures easy use, along with a glove-friendly ergonomic grip. These pliers are perfect for cleaning and removing spatter from nozzles, changing of tips, nozzles, insulation bushings and drawing and cutting of wire. Also has a hammer function.
