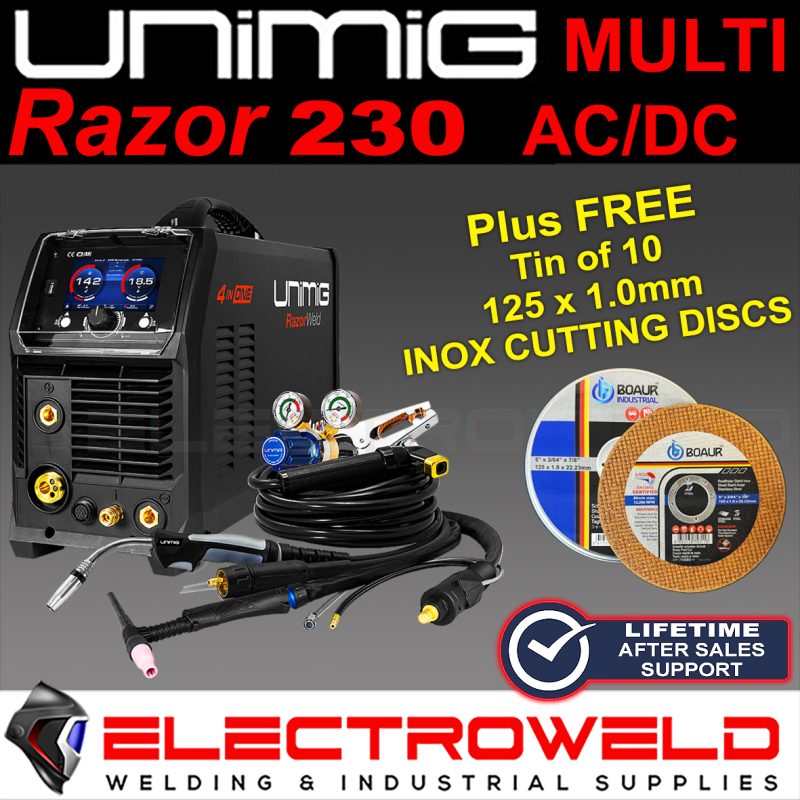

UNIMIG Razor 230 ACDC Mig Tig Stick Welder + 2 x Torch Machine AC/DC U11004K

SKU: U11004K-Razor

$2,274.95

5” Colour LCD Screen Clear and vibrant display for easy navigation and settings adjustment. Gas-shielded & Gasless MIG Versatile MIG welding options for both gas-shielded and gasless operations. AC/DC High Frequency TIG Precision TIG welding with both AC and DC capabilities and high-frequency start. Pulse MMA Enhanced Manual Metal Arc welding with pulse functionality for improved control and results. Power Factor Correction (PFC) Energy-efficient operation with reduced power consumption and stable output.

in stock

Request Price Match

Please include full website address
Wishlist
null
What You Get:
1 x UNIMIG Razor Multi 230 AC/DC Mig/Tig/Stick Welder, U11004K
1 x 4m SB24 MIG Torch
1 x 4m ARC TORCHOLOGY T2 TIG Torch
1 x 3m Twist Lock Electrode Holder
1 x 3M 300 Amp Earth Clamp & Lead
1 x Twin Gauge Argon Regulator
1 x 2m Quick-Connect Gas Hose
1 x 15A to 10A Conversion Lead
1 x Operating Manual
FEATURES:
As the latest and greatest addition to the UNIMIG RAZOR line, this machine is capable of any kind of welding you need it to. MIG, High Frequency AC & DC TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.
DUAL PLUG COMPATIBILITY: Connect to any 10A or 15A outlet for even greater versatility. The machine comes plugged with a 15A plug, so to connect to a 10A outlet simply attach the supplied conversion lead to your machine and change your output mode on the machine. In 10A mode the output is limited to 200A, and the duty cycle is limited to 10% at 200A.
POWER FACTOR CORRECTION (PFC): PFC gives you maximum electrical efficiency, so you get the most out of the machine.
5” COLOUR LCD SCREEN: Change settings with ease with the intuitive screen controls and next-gen user interface.
100+ SYNERGIC PROGRAMS: Just select your metal, wire size and gas, and you are good to go.
SPOOL GUN & FOOT CONTROL READY: This machine supports the connection of a spool gun as well as a wired or wireless foot pedal.
MIG SMART-SET: Setting us for a weld has never been easier with the preset MIG Synergic settings. Select your wire, gas, joint type and material, and you’re ready to go.
Complete MIG Weld Cycle Control: Get complete control over your MIG welds with a full set of adjustable parameters. It comes with the standard settings like as pre- and post-gas flow, arc ignition speed, and burnback. Plus it also includes more advanced features, like Arc Start and Crater Fill, for full control over the beginning and end of your welds.
ARC START: Start your welds hotter or colder, depending on what your project needs.
CRATER FILL: End your welds as strong as they started and eliminate craters and pinholes.
INDUCTANCE CONTROL: Choose your preferred arc characteristics with the Inductance settings.
TIG SMART-SET: The preset TIG Synergic settings are the easiest way to set up your TIG welds. Simply select your filler metal, joint type and material thickness, and it’s ready to weld.
AC/DC HIGH FREQUENCY TIG: TIG weld aluminium without issues with AC. High-Frequency TIG (H/F TIG) gives you more control when starting or stopping the arc and reduces the risk of contaminating the tungsten or the weld.
MIX AC/DC: Mixed AC/DC welding is the combination of TIG AC and TIG DC- in one weld. Mixed AC/DC gives you faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
PULSE MMA (STICK): Welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.
ARC FORCE: Keep your arc stable during every weld, with no cutouts or electrode sticking.
HOT START: Increase the stability of your arc ignition and improve the fusion at the start of every weld.
Geared Wire Drive: This machine features a geared roller drive unit, providing consistent and smooth wire feed, and it helps when using longer MIG torches..
Heat Control Trigger (HCT) Mode: When using the Heat Control Trigger Mode lets you set a base current, which you can switch to at any time during a weld by pressing the trigger button. Heat Control Trigger Mode is great for manual heat input control as you go.
ANTI STICK: Prevent your electrode from sticking ever again.
SPECIFICATIONS:
Brand: UNIMIG
Part Number: U11004K
Primary Input Voltage: 240V Single Phase
Supply Plug: 15 Amp
Ieff (A): 9.4 / 15
Rated Output: 25A/15.3V-200A/24V (10A)
25A/15.3V-230A/25.5V (15A)”
Protection Class: IP21
Insulation Class: H
Minimum Generator (Kva): 8.5 (10A) / 10 (15A)
Dinse Connector: 35/50
Standard: As/Nz60974-1
Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Warranty (Years): 3
Mig Specifications:
Mig Welding Current Range: 25-200A (10A) / 25-230A (15A)
Mig Duty Cycle @ 40°C: 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 230A, 60% @ 187A, 100% @ 145A (15A)
Mig Wire Size Range: 0.6-1.0Mm
Mig Wire Spool Size: 1Kg / 5Kg
Mig Welding Thickness Range: 1-10Mm
Drive Roller Size: 30/22
Tig Specifications:
Tig Function Type: Ac/Dc High-Frequency
Tig Welding Current Range: 10-200A
Tig Duty Cycle @ 40°C: 25% @ 200A, 60% @ 130A, 100% @ 100A (10/15A)
Tig Welding Thickness Range: 1-8Mm
Stick Specifications:
Stick Welding Current Range: 10-200A
Stick Duty Cycle @ 40°C: 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 200A, 60% @ 130A, 100% @ 100A (15A)”
Stick Electrode Range: 2.5-4.0Mm
Stick Welding Thickness Range: 2-12Mm
Size & Weight:
Dimensions: 660X210X330mm
Weight: 20Kg
Machine Features:
Wire Drive: Geared
Vrd: Yes
Synergic Programs: Yes
Burnback Adjustment: Yes
Thermal Overload Protection: Yes
Power Factor Correction (Pfc): Yes
