$3,465.00

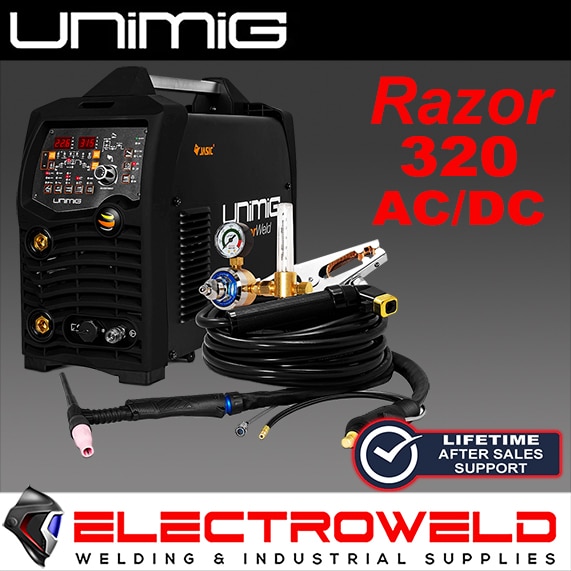

| WHAT YOU GET: |
|---|
|

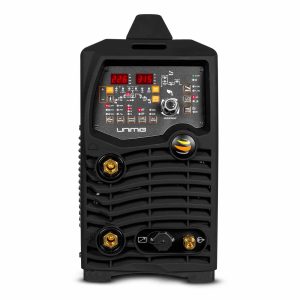

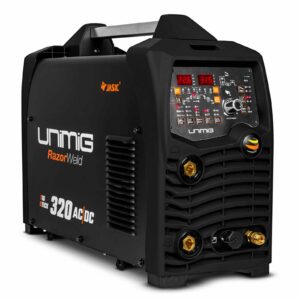

1 x RAZOR™ 320 AC/DC TIG Welder (with Life Time After Sales Machine Support)
|
|
1 x 4m High-Performance T3 TIG Torch
|
|
1 x 4m Twist Lock Electrode Holder
|
|
1 x 500 Amp Earth Clamp & Lead
|
|
1 x Argon Flowmeter Regulator
|
|
1 x 2m Gas Hose Complete with fittings
|
|
1 x Operating Manual
|
|
Please note, it is standard that these welders do not come with a plug. We will supply and fit the 15amp plug before we ship, so please allow a day to do this before shipping.
|
AC TIG: Featuring multiple AC output waveforms of Square, Trapezoidal and Sine, combined with AC Balance and AC Frequency control you have the ultimate tool in AC TIG Welding mode to suit all your AC TIG welding requirements.
DC TIG: Latest 43KHz inverter frequency technology provides the ultimate in smooth and stable arc condition for DC TIG welding mode, coupled with the Digital Weld Sequence Program provides complete and professional DC TIG Welding function.
MIX ARC: This function of MIX AC/DC makes it possible to modulate the welding current, alternating a period of TIG AC with a period of TIG DC-. This means that the efficiency of AC TIG welding can be combined with the high penetration of DC TIG welding, obtaining higher welding speeds and establishing the weld puddle quicker on cold work-pieces.
MMA: Full attention is given to MMA welding, providing both DC and AC output modes. Ignition AMP and Ignition Time provide for an operator-controlled Hot Start of the weld by applying extra current to the set weld current over a preset time. Arc force allows adjustment of the arc transfer from a digging action through to a softer layering effect. The complete and professional MMA function allows you to set the ideal arc condition no matter what the electrode and welding situation.

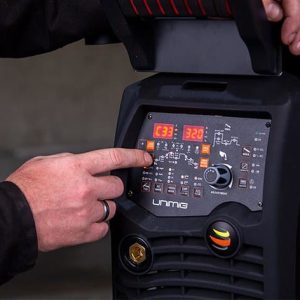

Weld Sequence Control: The Digital Weld Sequence Program and intelligent MCU software provide full TIG functionality in AC, DC and MIX modes. Adjustable pre-sets include Pre-Gas time, Start Current, Up Slope, Down Slope, Finish Current level and Post-Gas time. Digital Pulse parameter presets include Peak & Base current; Pulse Frequency & Pulse Width. HF and Lift Arc Ignition.
Torch Mode: Multiple torch trigger selections of 2T, 2S, 4T, and 4S provide complete flexibility and operator control over the weld sequence from start to finish.
Remote Control: The Remote Interface allows connection of either Torch Remote or Foot Pedal for remote control of amperage output. Job Memory: The job memory function allows you to enter and store weld parameter settings under job numbers. The job number can be recalled to reveal and use the weld parameters stored, and weld parameters can be further adjusted and stored as required. A total of 50 Jobs can be memorised and stored for recall.
Water Cooler Control: Activating the water cooler control allows for the water cooler to operate when the welding current is available during welding and will switch off automatically after 5 minutes of no welding current.
| FEATURES: |
|---|
| – The Digital Weld Sequence Program and intelligent MCU software provide full TIG functionality in AC, DC and MIX modes. Digital set of Pre Gas Time, Start Current Level, Up Slope Time, Down Slope Time, Finish Current Level and Post Gas Time combined with the choice of 2T or 4T trigger function. |
| – AC TIG: Featuring multiple AC output waveforms of Square, Trapezoidal and Sine, combined with AC Balance and AC Frequency control you have the ultimate tool in AC TIG Welding mode. |
| – DC TIG: Latest 43KHz inverter frequency technology provides the ultimate in smooth and stable arc condition for DC TIG welding mode, coupled with the Digital Weld Sequence Program provides complete and professional DC TIG Welding function. |
| – MIX ARC: This function of MIX AC/DC makes it possible to modulate the welding current, alternating a period of TIG AC with a period of TIG DC-. This means that the efficiency of AC TIG welding can be combined with the high penetration of DC TIG welding, obtaining higher welding speeds and establishing the weld puddle quicker on cold work-pieces. The operator adjustable parameter is the % of AC waveform compared to DC waveform, which can be varied from 5-95%. |
| – Stick Welding: MMA welding provides both DC and AC output modes. Ignition AMP and Ignition Time provide for an operator-controlled Hot Start of the weld by applying extra current to the set weld current over a preset time. |
| – With MMA, the arc force allows adjustment of the arc transfer from a digging action to a softer layering effect. |
| – Multiple torch trigger selections of 2T, 2S, 4T, and 4S provide flexibility and operator control over the weld sequence. |
| – Foot Control Ready: For extra versatility and convenience while welding. |
| – Water Cooler Compatible: Operate when welding current is available during welding and will switch off automatically after 5 minutes of no welding current. |
| SPECIFICATIONS: |
|---|
| Part Number: KUMJRRW320ACDC |
|
Supply Plug: 20 AMP Recommended
|
|
Primary Input Voltage: 415V Three Phase
|
| Rated Input Power: 9.0 KVA |
| Ieff AMPS: 10.0 Amps |
| Rated Output: 5-315A |
|
No Load Voltage: 9-73
|
|
TIG Function Type: AC/DC HF TIG & AC/DC Pulse
|
|
TIG Welding Current Range: 5-315A
|
|
TIG Duty Cycle@ 40°C : 30% @ 315A
|
|
TIG Welding Thickness Range: 1-16mm
|
|
Stick Welding Current Range: 10-270A
|
|
Stick Duty Cycle@ 40°C: 30% @ 270A
|
|
Stick Electrode Range: 2.5-4.0mm
|
|
Stick Welding Thickness Range: 2-16mm
|
|
ARC FORCE: 0-40
|
|
Front Blowing Time (S):0.5 ~ 10
|
|
Rear Blowing Time (S): 0.5 ~ 15
|
|
Hot Arc Current Time: 0.01 ~ 1.5s
|
|
Rise Time (S): 0~15.0
|
|
Decay Time (S): 2.0~20.0
|
|
Arc Strike Mode: Contact arc striking, High-Frequency arc striking
|
|
Efficiency: 80%
|
|
Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
|
|
Certifications: AS/NZ60974-1, AS/NZ60974-10
|
|
Dimensions(Mm): 566 x 223.5 x 405
|
|
Weight: 25.5kg
|
|
Warranty: 3 Years
|
