Unimig Razor 320 Acdc Welder, Helmet, Consumables, Torch, Trolley, Coolant Pk11062

SKU: PK11062

$5,200.00

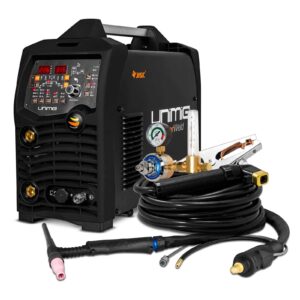

  • RAZOR 320 AC/DC TIG Welder
  • Digital Weld Sequence Program
  • Intelligent MCU Software
  • AC TIG Welding mode
  • MIX ACDC
  • Water Cooler – Bi-Flow Technology
  • ARC TORCHOLOGY T3W Water-Cooled TIG Torch
in stock

Request Price Match

Please include full website address
null
What You Get:
RAZOR 320 AC/DC Welder Bundle Includes:
1 x RAZOR™ 320 AC/DC TIG Welder (with Life Time After Sales Machine Support)
1 x RAZOR Water Cooler Trolley
1 x RWX8000 Welding Helmet (UMCWH)
1 x 4m High Performance T3 TIG Torch
1 x T3 TIG Torch Consumable Torch Starter Kit, Includes:
1 x Short Back Cap (UMCT2SBC)
1 x Quartz Cup Size 12 (UMCT2SSQZ12)
1 x Quartz Cup Size 14 (UMCT2SSQZ14)
1 x Quartz Cup Size 18 (UMCT2SSQZ18)
1 x 1.6mm Super12 Gas Lens Collet Body (UMCT2SSGL2016)
1 x 2.4mm Super12 Gas Lens Collet Body (UMCT2SSGL2024)
1 x 1.6mm Super14 Gas Lens Collet Body (UMCT2SSGL2316)
1 x 2.4mm Super14 Gas Lens Collet Body (UMCT2SSGL2324)
1 x 1.6mm Super18 Gas Lens Collet Body (UMCT2SSGL2816)
1 x 2.4mm Super18 Gas Lens Collet Body (UMCT2SSGL2824)
1 x UNICOOL Coolant 5L (UNICOOL)
1 x 4m Twist Lock Electrode Holder
1 x 500 Amp Earth Clamp & Lead
1 x Argon Flowmeter Regulator
1 x 2m Gas Hose Complete with fittings
1 x Operating Manual
Please note, it is standard that these welders do not come with a plug. We will supply and fit the 15amp plug before we ship, so please allow a day to do this before shipping.





Features
RAZOR 320 AC/DC TIG Welder with 3 Year Warranty
The Digital Weld Sequence Program and intelligent MCU software provide full TIG functionality in AC, DC and MIX modes. Digital set of Pre Gas Time, Start Current Level, Up Slope Time, Down Slope Time, Finish Current Level and Post Gas Time combined with the choice of 2T or 4T trigger function.
AC TIG: Featuring multiple AC output waveforms of Square, Trapezoidal and Sine, combined with AC Balance and AC Frequency control you have the ultimate tool in AC TIG Welding mode.
DC TIG: Latest 43KHz inverter frequency technology provides the ultimate in smooth and stable arc condition for DC TIG welding mode, coupled with the Digital Weld Sequence Program provides complete and professional DC TIG Welding function.
MIX ARC: This function of MIX AC/DC makes it possible to modulate the welding current, alternating a period of TIG AC with a period of TIG DC-. This means that the efficiency of AC TIG welding can be combined with the high penetration of DC TIG welding, obtaining higher welding speeds and establishing the weld puddle quicker on cold work-pieces. The operator adjustable parameter is the % of AC waveform compared to DC waveform, which can be varied from 5-95%.
Stick Welding: MMA welding providing both DC and AC output modes. Ignition AMP and Ignition Time provide for an operator-controlled Hot Start of the weld by applying extra current to the set weld current over a preset time.
With MMA, the arc force allows adjustment of the arc transfer from a digging action to a softer layering effect.
Multiple torch trigger selections of 2T, 2S, 4T, 4S provide flexibility and operator control over the weld sequence.
Foot Control Ready: For extra versatility and convenience while welding.
Water Cooler Compatible: Operate when welding current is available during welding and will switch off automatically after 5 minutes of no welding current.
Voltage Reduction Device.
Thermal Overload Protection
Crater Current Control.

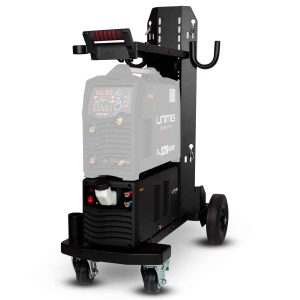

Features Water Cooler Trolley



The RAZOR™ 320 AC/DC Water Cooler is the perfect accessory to maximise TIG welding performance, especially at high amperages.
When combined with the T3W Water-Cooled TIG Torch, Bi-Flow™ Technology is utilised – high capacity cooling chambers remove excessive heat at source, allowing greater performance from the TIG Torch.
Features T3W TIG Torch



The ARC TORCHOLOGY® T3W Water-Cooled TIG Torch has been designed for maximum performance and longer consumable lifecycles.
Thanks to exclusive torch technologies, this torch boasts a better power to weight ratio compared to standard UNIMIG torches – more power in a lightweight body.
The T3W TIG Torch also comes with a flex-neck torch head as standard, perfect for TIG welding in tighter and restrictive environments.

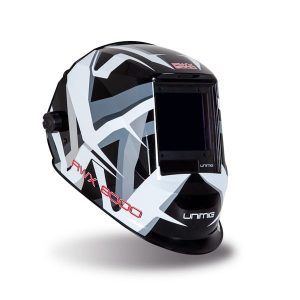

Features Welding Helmet



2 Year Warranty.
This helmet features a 1/1/1/1 classification, the highest possible classification for optical clarity.
4 Arc Sensors maintain constant sensing and automatically switches the helmet from light to dark and back again
3 x Memory Functions – Store different shade, sensitivity and delay options into three easily accessible pre-sets.
Enhanced Viewing Area offers a larger viewing area for the operator.
True Colour High Definition Filter Technology greatly improves the optics allowing the user to see a full spectrum of colours. Also Assists with alleviating eye fatigue making it safer for extended periods of welding
Grind Mode allows the operator to switch the helmet from the welding mode into a fixed shade for grinding. This function removes the need for the operator to change visors and to simply use the welding helmet for grinding when required.
Shade Control Automatic Welding Lens allows the operator to switch between variable welding shades from 5-9 and 9-13.
Permanent complete protection against UV/IR even in transparent condition. The UV/IR protection level is DIN15 all the time. Din standard approval guarantees maximum eye protection during welding.
Dark shade can be adjusted from shade 5-9 and shade 9-13 this makes it ideal for Gas cutting, Plasma cutting, Low amp TIG operation and MIG welding.
The unique shape design helps channel welding fumes away from the helmet and face area.
Automatic sleep mode shuts LED off when helmet is placed into its storage bag or darkness for battery conservation.
The front cover lens provided is manufactured of high polymer materials, is wear-resistant, thermostable, and is resistant to spatter.
Features Coolant
UNICOOL Coolant is a balanced recirculation system and welding torch coolant.
It has been formulated for use with MIG Welding, TIG Welding, Laser Welding, Laser Cutting, Plasma Welding and Robotic Systems.
Its thermal stability properties make it an excellent choice for use with high-performance torches.
When used in conjunction with a regular coolant system maintenance program, UNICOOL will eliminate damaging mineral deposit build-up and will prevent clogging of the cooling system.
This coolant will extend the life of pumps, seals, gaskets and prevent costly downtime.
It contains rust and corrosion inhibitors that will help extend the life of the cooling system components.
This coolant is classified as a non-dangerous product.
Features T3W Starter Kit
The ARC TORCHOLOGY TIG consumable range is now complete, featuring both ceramic and quartz cups. The T2/T3W SUPER Series Kit (U42006) features everything needed to use the all-new large gas cup range of Ceramic and Quartz cups.
Our all-new SUPER Series features larger 12, 14 and 18 cup sizes for maximum gas coverage.
Packaged in a sturdy carry case, consumable starter kits are the perfect companion to be bundled alongside machines. The kit contains all the essential consumables for a T2 or T3W TIG Torch.
Get unmatched visibility with our quartz cups. Made with specially tempered glass, they’re extra heat resistant, and they’re see-through. On top of great weld visibility, our quartz cups are designed to be used with our gas lens, so the shrouds are wider, giving you greater gas coverage.
Gas Lens Collet Bodies come with a diffuser and a mesh screen, so they’re wider, but they distribute gas more evenly and with less turbulence over the weld. You can have the tungsten stick out further, giving you better manoeuvrability and visibility of the weld pool. They’re perfect for welding inside corners or in tight spaces.
TIG Torch Ceramic Cups are designed for maximum performance.
TIG Torch Heat Zone Isolators transfer heat from the ceramic cup resulting in cooler running torches with increased power to weight performance ratios.
Specifications:
Part Number: KUMJRRW320ACDC
Supply Plug: 20 AMP Recommended
Primary Input Voltage: 415V Three Phase
Rated Input Power: 9.0 KVA
ieff AMPS: 10.0 Amps
Rated Output: 5-315A
No Load Voltage: 9-73
TIG Function Type: AC/DC HF TIG & AC/DC Pulse
TIG Welding Current Range: 5-315A
TIG Duty Cycle@ 40°C : 30% @ 315A
TIG Welding Thickness Range: 1-16mm
Stick Welding Current Range: 10-270A
Stick Duty Cycle@ 40°C: 30% @ 270A
Stick Electrode Range: 2.5-4.0mm
Stick Welding Thickness Range: 2-16mm
ARC FORCE: 0-40
Front blowing time (s):0.5 ~ 10
Rear blowing time (s): 0.5 ~ 15
Hot arc current time: 0.01 ~ 1.5s
Rise time (s): 0~15.0
Decay time (s): 2.0~20.0
Arc strike mode: Contact arc striking, High-Frequency arc striking
Efficiency: 80%
Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium
Certifications: AS/NZ60974-1, AS/NZ60974-10
Dimensions(mm): 566 x 223.5 x 405
Weight: 25.5kg
Warranty: 3 Years
Specifications T3W Torch
Part Number:
Cooling Method: Water Cooled
Duty Cycle – DC: 100% @ 400A
Duty Cycle – AC: 100% @ 280A
Dinse Size: 35/50
Electrode Size: 1.0-4.0mm
Standard: EN60974-7
Specifications RWX8000 Helmet
Brand: Unimig
Part Number: UMCWH
Filter Dimensions (mm): 114 x 133 x 9.5
View Size (mm): 100 x 83.4
Arc Sensors: 4
Classification: 1/1/1/1
Power Control: Fully Automatic
Light State: 4
Dark State: 5-9 / 9-13
UV/IR Protection: DIN15
Time from Light to Dark: 0.08ms
Time from Dark to Light:: 0.1-0.9s
Sensitivity Delay: Adjustable (1-5 for low-high)
Power Supply: Solar Cells & CR2450 Replaceable Battery
Shade Control: Yes
Grind Control: Yes
Standards: CE, ANSI , CSA, AS/NZS 1338.1 (Auto-Darkening), AS/NZS 1337.1 (High Impact)
Warranty: 2 Years
Specifications Coolant
Part No: UNICOOL
Volume: 5L
Specifications Water Cooler
Brand: Unimig
Product No: JRTIG320TROLLEY
Primary Input Voltage: 240V Single-Phase
Rated Input Power (kVA): 180W
Standard: IEC60974-2
Dimensions (mm): 500x200x234
Weight: 14.8kg
