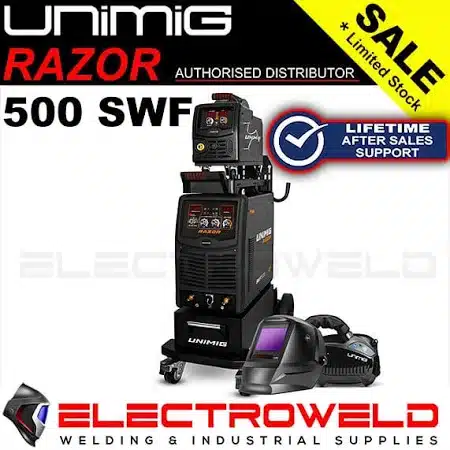

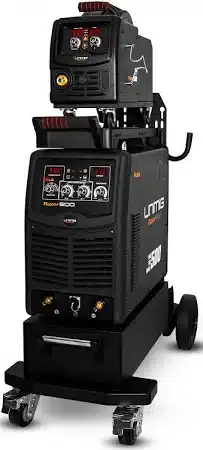

UNIMIG Razor 500 SWF Mig Tig Welder + PAPR Air Helmet +Wire Feeder KUMJRRW500SWF

SKU: PK11077

$5,999.00

The RAZOR 500 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 500 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

in stock

Request Price Match

Please include full website address
null
What You Get:
RAZOR 500 SWF Bundle Includes:
1 x RAZOR 500 SWF MIG/TIG/STICK Welder – (with Life Time After Sales Machine Support)
Please note, it is standard that these welders do not come with a plug. We will supply and fit the plug before we ship, so allow a day to do this before shipping.
1 x UNIMIG PAPR Welding Helmet (U21014K) System Includes:
1 x Auto-darkening welding helmet
1 x PAPR blower unit with attached battery and filter
1 x Belt / Harness
1 x Battery Charger
1 x Airflow indicator
1 x Instruction manual
1 x Carry Bag
1 x Separate Wire Feeder Unit
1 x 4m SB38 MIG Torch
1 x Separate Wire Feeder Unit
1 x 10m Interconnecting Cables
1 x 10m Twist Lock Electrode Holder
1 x 500 Amp Earth Clamp & Lead
1 x Twin Gauge Argon Regulator
1 x 2 Metre Gas Hose Complete with fittings
1 x Operating Manual
PLUS Plug Fitted to Customer Specifications:
10 Amp / 20 Amp / 32 Amp / Custom Plug (please email us)
Features:
The RAZOR™ 500 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions.
There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.
This is an industrial machine equiped with a separate 4 wheel gear driven wire feeder and 10m interconnecting cables.
The MIG function allows you to weld with solid and Flux Cored Gasless wires.
Adjustment of Voltage & Wire Feed at the wire feeder make for easy setting of welding parameters and give the convenience of remote adjustment from the power source.
This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop.
Crater current setting delivers perfect finishing of the weld, the electronic inductance offers fine adjustment of the arc characteristic and burn back adjustment leaves the wire stick out ready for the next weld.
Wire inch and gas check provides set up of wire feed and gas setting without any waste of wire or gas.
Added MMA welding capability delivers easy and high quality welding using electrodes, including cast Iron, stainless steel and low hydrogen.
Three phase 415V power.
Four geared roller drive unit providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.
Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.
Designed for superior performance and manoeuvrability, offering the highest quality of welds from UNIMIG’s range.
Ideal for heavy and structual welding applications, general engineers, maintainance workshop and rural workshops.
Features Unimig PAPR Helmet
The powered respirator keeps fresh, clean air pumping around your face so that you can breathe easily while you weld.
Provides industrial level protection for the most extreme welding applications and environments where effective and reliable eye and respiratory protection is an absolute must.
It has a filter efficiency of 99.996% @ 0.3um, which means that welding fumes, particles and gases are all being filtered to provide you with clean, fresh air.
The 12-volt, 4400MAh lithium-ion battery provides for up to 8 hours use on level 1, 6 hours on level 2, and 4 hours on level 3 airflow setting.
ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
External grind button, so you can keep it on while you’re grinding, no need to remove your safety gear or fiddle around with flip lens or hoods.
With a built-in 4400mAH lithium-ion battery, it’s quick and easy to recharge with the supplied power adapter. Up to 8 hours of battery life on the lowest intensity settings, you can work an entire shift before it needs to be charged again. Lasts up to 4 hours on the highest intensity setting.
Welding helmet lenses are graded on a rating system from 1 to 3 across four categories, with 1 being the highest and 3 being the lowest. This helmet features the maximum 1/1/1/1 classification for optical quality, diffusion of light, light consistency and angle dependence.
The three most frequently used settings can be stored and reactivated easily by using the three memory buttons on the Auto-Darkening Filter (ADF).
Positive pressure system that provides constantly stable clean air
Long-lasting reliable P2 filter.
Auto shutdown mode.
3 airflow levels for varied working conditions.
Flashing and audible alarm indicates low battery, low airflow, filter blockage and high battery temperature.
The respirator unit is fitted with a spark filter and replaceable pre-filter to protect and extend the life of the main filter.
Shoulder harness for extended wear.
Side or rear mounting of respirator pack.
Controls down after 30mins of no use.
The LCD display clearly shows airflow level, battery charge level and filter status.
The ergonomic design, lightweight shell, fully adjustable head gear & back harness delivers maximum comfort during long welding periods.
The quick-disconnect and swivel breathing tube provides easy adjustability to accommodate space restraints.
Features the latest digitally-controlled auto darkening filter, adjustable from shade 5-9 and shade 9-13 makes it ideal for MMA, TIG and MIG welding, as well as Plasma Cutting and even grinding applications.
0/5 (0 Reviews)
Part Number: KUMJR350SWF
Supply Plug: 32 AMP Recommended
Primary Input Voltage: 415V Three-Phase
Rated Input Power: 12.8kVA
ieff AMPS: 26
Rated Output: 50A/16.5V – 350A/31.5V
No Load Voltage: 65
Minimum Generator (kVA): 20
Dinse Connector: 35/50
MIG Welding Current Range: 50-350A
MIG Duty Cycle @40ºC: 40% @ 350A
MIG Wire Spool Size (Kgs): 5kg / 15kg
MIG Wire Size Range: 0.6-1.2mm
MIG Welding Thickness Range: 1-16mm
Drive Roller Size: 30/22 (x2)
TIG Function Type: DC Lift Arc
TIG Welding Current Range: 20-350A
TIG Duty Cycle@ 40°C : 40% @ 350A
TIG Welding Thickness Range: 1-10mm
Stick Welding Current Range: 20-350A
Stick Duty Cycle@ 40°C: 40% @ 350A
Stick Electrode Range: 2.5-6.0mm
Stick Welding Thickness Range: 2-16mm
Wire Drive: Seperate 4 Geared
VRD: Yes
Spool Gun Connection: Yes
Push / Pull Gun Connection: Yes
Burnback Adjustment: Yes
Wire Inch: Yes
Inductance Control: Yes
Thermal Overload Protection: Yes
Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Dimensions(mm): 595 x 280 x 440
Weight: 41kg
SWF Dimensions(mm): 630 x 235 x 420mm
SWF Weight: 14kg
SWF Interlocking Cable Length: 10m
Certification: AS/NZ60974-1
Warranty: 3 Years
Specifications PAPR Helmet
Part Number: U21014K
Helmet Specifications
Filter dimensions (mm) 114 x 133 x 9.5
Viewing area (mm) 100 x 83.4
Classification: 1/1/1/1
Light state: Shade 4
Dark state shade: 5-9 / 9-13
Shade control Internal: Digital control
Switching time @ 23°C: 0.08ms / 0.00008 seconds
Sensitivity control: Internal Digital control
Time from dark to light: 0.1 – 0.9s
Grinding Function: Yes Digital Control
Grinding Flash: Yes
Shade Control: Yes
Low voltage show: Yes
Power Supply: Solar cell Lithium batteries
Arc Sensors: 4
Face Shield Standards: AS/NZS 1337.1:2010
Welding Filter Standards: AS/NZS 1338.1:2012
Respirator Specifications
Filter Type: APR-P2
High filter efficiency: 99.996%@0.3um
Airflow speed: 165L/min, 200L/min, 230L/min
Battery Type: Rechargeable Li-ION 12V 4400mAh
Battery operating time: Level 1: >8h / Level 2: >6h / Level 3: >4h
Charge time: 3~4h
Recharge quantity: 500
Noise Level: 500
Standards:
UNIMIG PAPR System: AS/NZS 1716:2012
UNIMIG Face Shield: AS/NZS 1337.1:2010 [High Impact]
UNIMIG Welding Filter: AS/NZS 1338.1:21012
Warranty blower unit: 2 Years
Warranty battery: 6 Months
