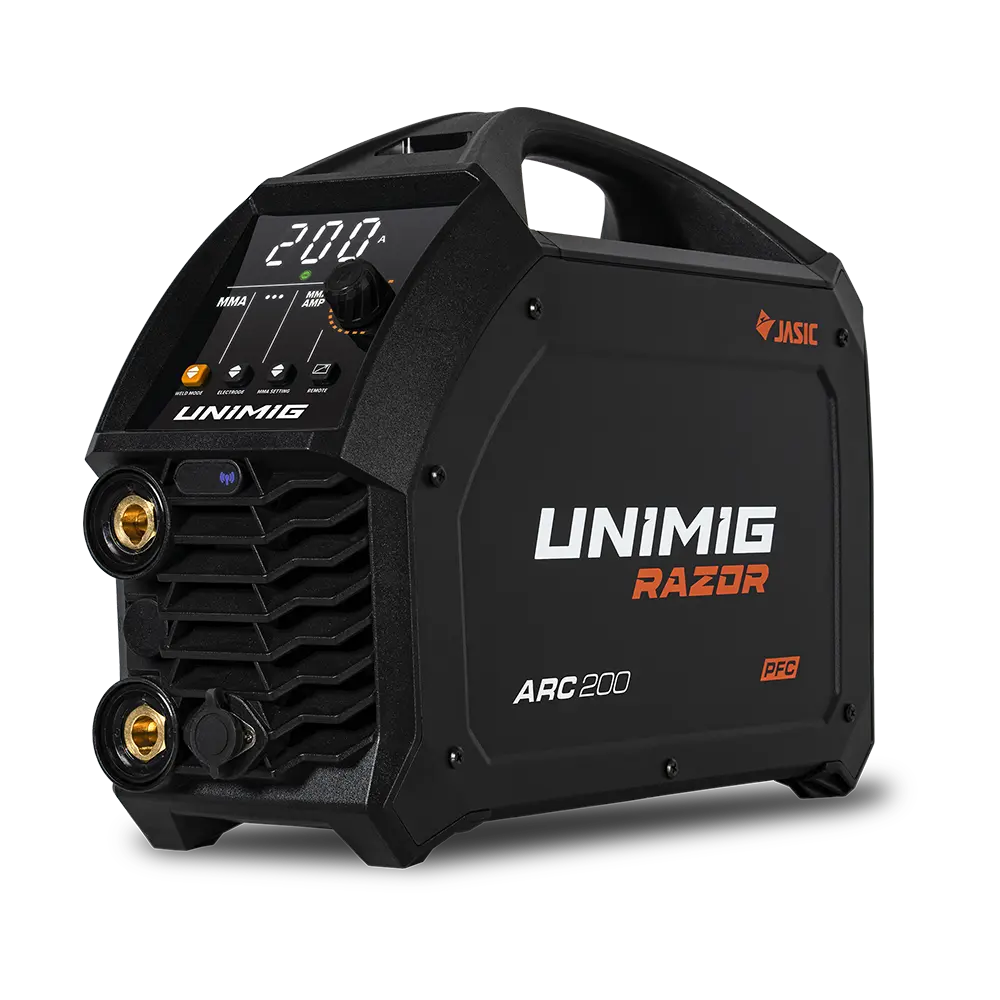

UNIMIG Razor Arc 200 PFC, Tig Stick MMA Welder DC Lift VRD 15A Welding, U13003K

SKU: U13003K

$849.00

The UNIMIG Razor Arc 200 PFC Tig Stick Welder has Power Factor Correction (PFC) to give you maximum electrical efficiency. Advanced MMA Features – Features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. With HD Backlit Interface – This next generation interface panel is bright and easy to read in any environment. DC Lift Arc TIG allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. Smart Fan – Diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

in stock

Request Price Match

Please include full website address
null
Electroweld offer “Lifetime After Sales Machine Support” – if you have any questions that may occur with a welder purchased from Electroweld, then our team will assist you with how to use the machine, and provide the same service to you in this area, regardless how long ago you purchased the machine.
What You Get:
1 x UNIMIG Razor Arc 200 PFC Tig Stick Welder, U13003K
1 x 4m Twist Lock Electrode Holder
1 x 300 Amp Earth Clamp & Lead
1 x Operating Manual
Features:
HD Backlit Interface – This next generation interface panel is bright and easy to read in any environment.
Power Factor Correction (PFC) – PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.
Advanced MMA Features – Features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
Optional Remote Control – Upgrade your machine with a handy remote control. Both a wired and wireless controller are available.
DC Lift Arc TIG – Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip from sticking to the workpiece and breaking the tip from the tungsten electrode.
Smart Fan – Diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Lightweight & Portable – Weighing just 7.6kg, the RAZOR ARC 200 PFC is ready to go anywhere you need it.
Brand: UNIMIG
Part Number: U11003K
Primary Input Voltage: 240V Single Phase
Supply Plug: 15 AMP
Ieff: 14.9 A
Rated Output: 20A/20.8V – 200A/28V
No Load Voltage: 78 V
Protection Class: IP23S
Insulation Class: H
Minimum Generator: 9.0 kVA
Dinse Connector: 35/50
MMA Weld Material: Mild Steel, Stainless Steel, Cast Iron
TIG Weld Material: Mild Steel, Stainless Steel, Copper, Silicon Bronze
Dimensions: 413×150×311 mm
Weight: 7.6kg
Warranty: 5 Years
Standard: AS/NZ60974-1
STICK:
STICK Welding Current Range: 20-200A
STICK Duty Cycle @ 40°C:
25% @ 200A
60% @ 129A
100% @ 100A
STICK Electrode Range: 2.5-4.0mm
STICK Welding Thickness Range:
2-12mm
TIG:
TIG Function Type:
DC Lift Arc
TIG Welding Current Range:
10-200A
TIG Duty Cycle @ 40°C:
25% @ 200A
60% @ 129A
100% @ 100A
TIG Welding Thickness Range:
1-8mm
