- Built-in Air Compressor
- Perforated Cutting Mode
- Pilot Arc Start
- SureGrip SC80 Plasma Torch
- 10mm Clean-Cut
10 Pairs X 3M 5925 P2 Filter, For 6000 Cartridge Respirator Grinding Welding
$119.95 – $224.95
$2,009.00
What You Get: |
---|

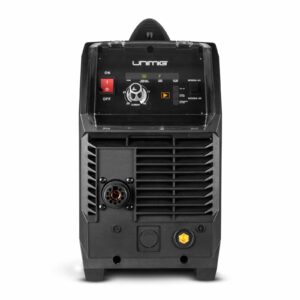

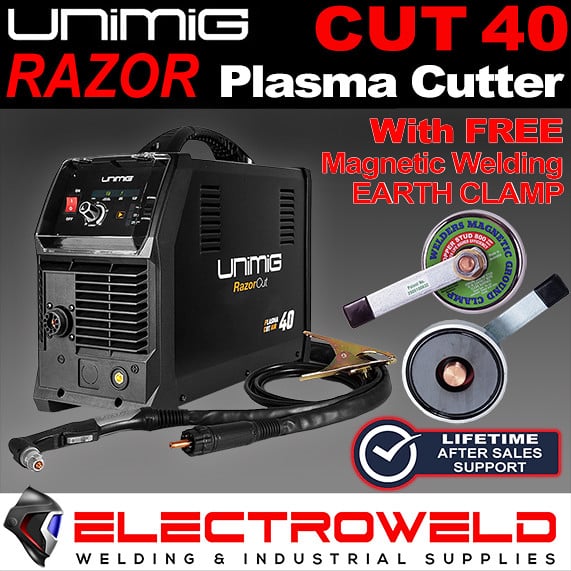

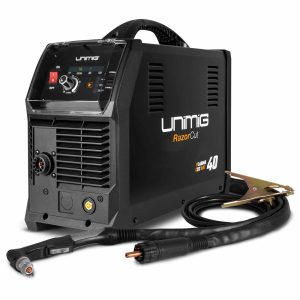

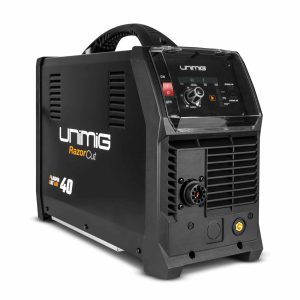

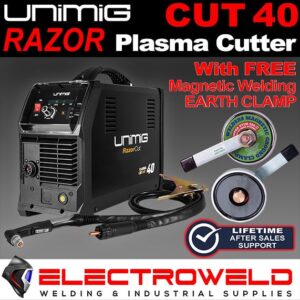

1 x RAZOR™ CUT 40 Plasma Cutter (with Life Time After Sales Machine Support)
|
1 x Serpent & Dove 800A Earth Clamp
|
1 x 6m SC80 Plasma Torch
|
1 x 4m 300 AMP Earth Clamp
|
1 x Air Regulator
|
1 x Operating Manual
|
Features: |
---|
RAZOR™ CUT 40 Plasma Cutter with 3 Year Warranty |
Built-in Air Compressor – gives you more flexibility with a plasma cutter than ever before. Connect an external air compressor for even greater cutting power. |
Perforated Cutting Mode – Cuts both solid material and perforated materials with ease. |
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces. |
Produces a high temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron , stainless steel, copper, aluminium, brass. |
Equipped with a high quality SureGrip SC80 Plasma torch with Euro connection, developed specifically to enhance and improve the cut quality. |
Connection of the SC80 Plasma torch provides effortless starting of the cut with powerful, fast and accurate cutting capability, additional is the benefit of longer life cycle consumable electrodes and cutting tips. |
The RAZOR™ CUT 40 AIR boasts some serious cutting power with 10mm clean-cut and 12mm severance on the built-in air compressor, and 16mm clean-cut and 20mm severance on an external compressor. |
Suitable for a wide range of applications including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair and maintenance services. |
Features Earth Clamp |
Quick and easy to use. Magnetic earth clamp capable of handling 800 amps. |
Excellent for holding earth lead in any position quick to release and relocate. |
Copper earthing stud. |
Easy to remove handle. |
Provides sound connection via magnetic force to steel. |
Not suitable for aluminium & stainless steel. |
Manufactured in Australia. |
Specifications: |
---|
Part Number: U14001K |
Supply Plug: 15 AMP |
Primary Input Voltage: 240V Single Phase |
Rated Input Power: 7.2 KVA |
Rated Output: 96V |
Ieff (A): 15A |
No Load Voltage: 210
|
Minimum Generator (kVA): 10.0
|
Plasma Cut Current Range: 20-40A
|
Plasma Cut Duty Cycle@ 40°C : 25% @ 40A / 60% @ 26A / 100% @ 20A
|
Mild Steel Cut Thickness: 12mm (INTERNAL) / 16mm (EXTERNAL)
|
Mild Steel Severance Thickness: 14mm (INTERNAL) / 18mm (EXTERNAL)
|
Aluminium Cut Thickness: 6mm (INTERNAL) / 8mm (EXTERNAL)
|
Aluminium Severance Thickness: 8mm (INTERNAL) / 10mm (EXTERNAL)
|
Stainless Steel Cut Thickness: 6mm (INTERNAL) / 8mm (EXTERNAL)
|
Stainless Steel Severance Thickness: 8mm (INTERNAL) / 10mm (EXTERNAL)
|
Air Flow Draw Off (L/min): 120
|
Air Flow Pressure (Bar): 5.17 (75 psi)
|
Plasma Arc Start: Pilot Arc
|
Dimensions (mm): 610 x 21 5x 420
|
Weight: 18kg
|
Warranty: 3 Years
|
Specifications Earth Clamp
|
Brand: Serpent & Dove |
Part Number: 500064 |
Amps: 800 |
Manufactured: Australia |
