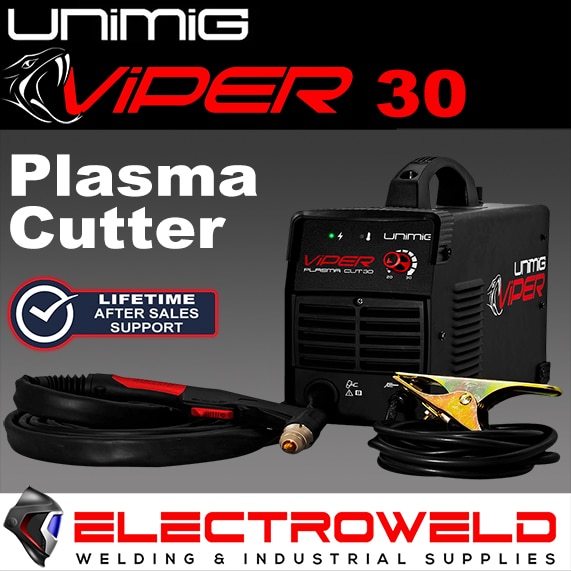

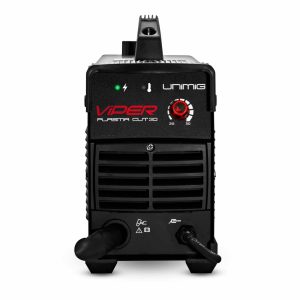

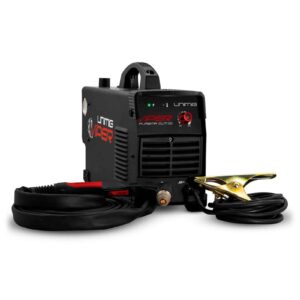

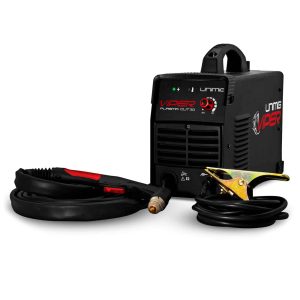

Unimig Viper Cut 30 Plasma Cutter – Kupjrvc30

SKU: KUPJRVC30

$599.00

Latest IGBT Inverter Technology
10A Plug: Connect To Standard Power Outlet
High Quality SC30 Plasma Torch
Pilot ARC Start
Voltage Reduction Device
Suitable To Cut All Electrically Conductive Materials
12mm Clean Cut / 14mm Severance On Mild Steel
1 Year Warranty

Out of stock

Out of stock

Request Price Match

Please include full website address
null
WHAT YOU GET:
1 x VIPER™ CUT 30 Plasma Cutter (with Life Time After Sales Machine Support)
1 x 4m Direct Connect SC30 Plasma Torch
1 x 4m Direct Connect Earth Clamp
1 x Air Regulator
1 x Operating Manual

VIPER CUT 30 PLASMA CUTTER

The all-new VIPER CUT 30 plasma cutter is specifically designed for the DIY enthusiast. With recent technological breakthroughs, the need for an expensive 15A setup is no longer a boundary preventing you from plasma cutting. It has never been easier to set up a plasma cutter in your workshop!

Bigger doesn’t always mean better – A more effective output has allowed the VIPER CUT 30 to clean cut up to 12mm Mild Steel, offering powerful performance from a machine with a 10A plug.



FEATURES:
– VIPER™ CUT 30 Plasma Cutter With 1 Year Warranty
– Latest IGBT Inverter Technology.
– Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
– 12mm cut on mild steel / 6mm cut on stainless steel / 6mm cut on aluminium.
– Produces a high temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron , stainless steel, copper, aluminium, brass.
– Equipped with a high quality SureGrip SC30 Plasma torch
– Voltage Reduction Device – Prevents voltage overloading
– 10A Plug – Connects to any standard power outlet.
– Thermal Overload Protection – Prevents machine from exceeding a safe operating temperature.
– Strong metal housing, with plastic front and rear covers.
– Suitable for Light industrial application.



  • 10a Plug
  • 12mm Clean Cut / 14mm Severance
  • Voltage Reduction Device
  • Thermal Overload Protection
  • Low-Frequency Start (Pilot Arc Start)
  • Circle Cutting Kit Compatible
  • Great Consumable Life



E23412/23U

0/5 (0 Reviews)

Specifications

Part Number KUPJRVC30
Primary Input Voltage 240v – 1 +/- 15%
Rated Input Power KVA 7.50
Output Current Range (A) 20-30
Rated Output Voltage (V) 310
Insulation Class F
Protection Class IP21S
Plasma Arc Starting Pilot Arc
Air Flow Draw Off (l/min) 170
Duty Cycle 40 Deg C 15% @ 30Amps
Air Flow Pressure (Bar) 5-6 (70-87 psi)
Cutting Thickness – Clean 12mm
Cutting Thickness – Severance 14mm
Dimensions (mm) 460 x160 x 320
Weight (kg) 11.6
Certification Approval AS/NZ60974-1
