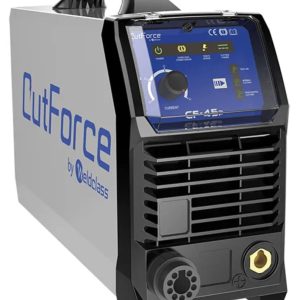

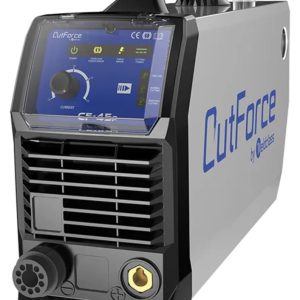

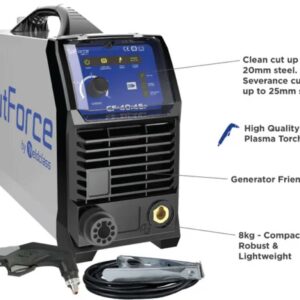

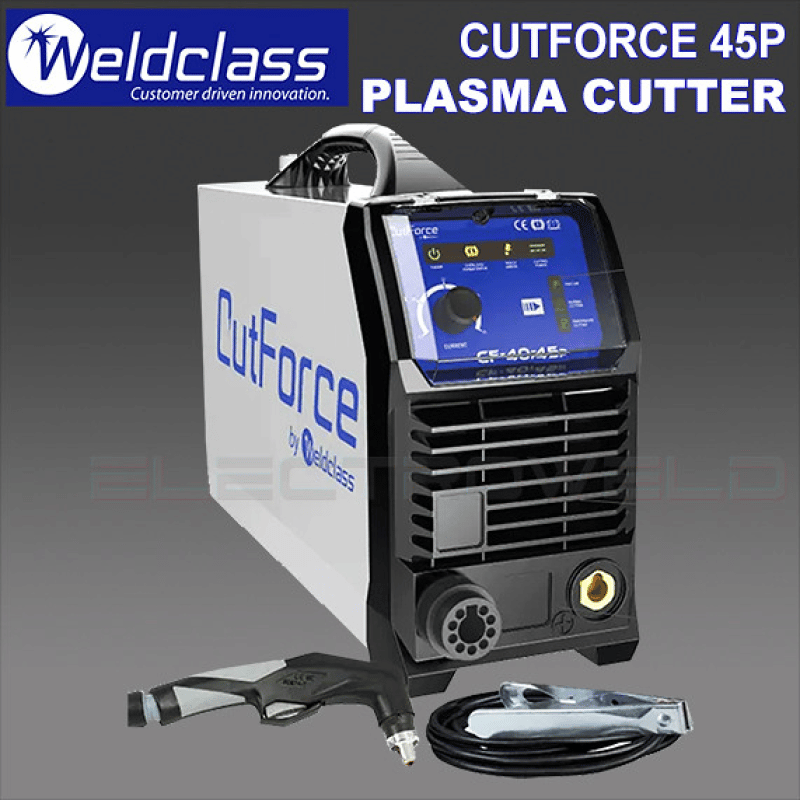

Weldclass Cutforce 45P Plasma Cutter, Torch PFC – Optional Air Filter CF-06176

SKU: N/A

$1,469.00$1,824.00

  • The cut capacity of 20mm
  • The highest performing single-phase plasma cutters
  • Weighing only 8kg
  • Fitted with a 15A 240V plug
  • High-quality 6m torch with ‘Euro-style connection
  • Power Factor Correction (PFC)
  • Reliable Pilot Arc Ignition
  • Generator Friendly – min 8kva, ideal 10+kva
  • Stressed-Tested to 440V
in stock

Request Price Match

Please include full website address
null
What You Get:
1 x WELDCLASS Cutforce 45P Plasma Cutter (with Life Time After Sales Machine Support)
Plus Optional Choice: Weldclass Air Filter, PLATINUM Z-20 (Pictured)
1 x Plasma Torch 6m with Torch Parts Kit
1 x Air Regulator with filter & Nitto style air fitting
1 x Earth Lead 4m
1 x Large Carry Case
1 x Shoulder Strap
1 x Cable Strap
1 x Long Power Input Lead 3m



Features:
With a cut capacity of 20mm (clean cutting of mild steel), severance capacity of 25mm, and 45% duty cycle at maximum output, the Cutforce 45P is one of the highest performings single-phase plasma cutters on the market.
Weighing only 8kg and fitted with a 15A 240V plug, it’s also super portable and versatile.
Features a very high-quality 6m torch with ‘A euro-style connection, Air regulator with Nitto fitting, large carry case, and shoulder strap.
Power Factor Correction (PFC) – reduced power draw, increased duty-cycle, ideal for long leads & generators.
Reliable Pilot Arc Ignition – non-HF avoids EMF interference.
Generator Friendly – min 8kva, ideal 10+kva.
Intelligent Protection & Warning System – prevents costly torch damage.
Stressed-Tested – to 440V & over-specified componentry for reliability.
Perforated Plate / Expanded Mesh Cutting Mode.
PFC technology means the CF-45P is extremely power efficient, delivering a higher duty cycle for longer cuts and higher productivity, even on heavier section material.
With PFC, the CF-45P can be used on long extension leads (up to 100m) and is a great choice for operation on generator power, where required.
Features Air Filter
Increases Plasma torch parts life & reduces consumable costs.
Z-20 filter removes 99.97% of water, dirt & oil particles, significantly improving air quality.
Self-draining – engineered for low maintenance, “set and forget”.
High-performance filtration of water/moisture, dirt and oil particles down to 1 micron.
Z-20 filter cartridge lasts up to 6 months, or even 12+ months in cases of infrequent use = reduced cost. Roll filters require frequent cartridge replacement = ongoing cost
Specifications:
Part Number: CF-06176
Supply Plug: 15A 240V
Current Output: 20A – 40A
Plasma Cut Duty Cycle:
40A / 120V @ 30%
40A / 96V @ 45%
30A / 92V @ 100%
Mild Steel Quality Cut Thickness: <14mm
Mild Steel Recommended Cut Thickness: <20mm
Mild Steel Severance Thickness: <25mm
Stainless Steel Quality Cut Thickness: <12mm
Stainless Steel Recommended Cut Thickness: <18mm
Stainless Steel Severance Thickness: <22mm
Aluminium Quality Cut Thickness: <12mm
Aluminium Recommended Cut Thickness: <14mm
Aluminium Severance Thickness: <20mm
Air Requirements: Min 120 L/min (4.5cfm)
Dimensions incl Handle (mm): 520(L) x 150(W) x 310(H)
Weight: 8kg
Standard: AS 60974.1
Warranty: 3 Years
Specifications Air Filter
Filter Capacity: >1.0 Micron
Port Size: 1⁄4” Female (inlet and outlet)
Flow Capacity: 20 SCFM @ 100 psi
Max Pressure: 150 psi / 1,000 kpa
Self Draining: Yes
Dimensions (mm): 185(H) x 75(W) x 65(D)
Replacement Element / Cartridge: Part no. WC-06256
Weight:0.8kg
