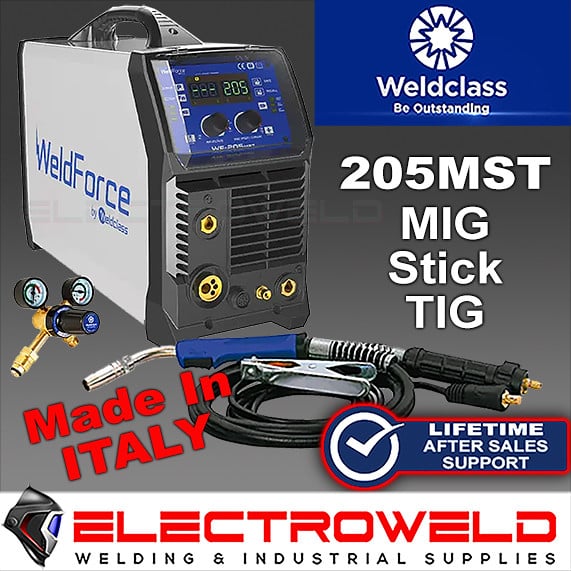

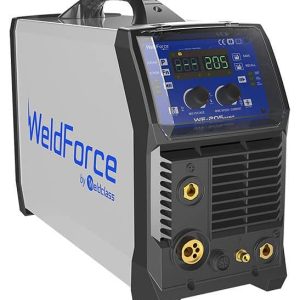

Weldclass Weldforce 205mst Synergic Welder 200a Mig Tig Stick Smart Set Wf-06166

SKU: WF-06166

$1,849.95


  • Multi-Function MIG
  • Geared Drive System
  • Fan-On-Demand
  • Advanced Stick And TIG Functions
  • Gasless & Aluminum Wire
  • PFC Technology
  • Geared Wire Drive System
in stock

Request Price Match

Please include full website address
null

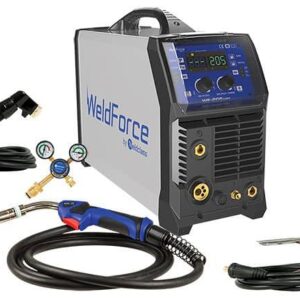

What You Get:
1 x WELDCLASS Weldforce 205MST Welder, WF-06166
1 x Earth Lead 4m
1 x Gas Regulator
1 x Large Carry Bag
1 x Long Power Lead 3m
1 x MIG Torch H/Duty BZL 25 4m
1 x Stick Lead 4m
1 x Cable Retaining Strap
1 x Driver Roller for 0.8/0.9mm gasless wire
1 x Driver Roller for 0.8/0.9mm steel/solid wire
1 x Driver Roller for 1.0/1.2mm aluminum wire



Features:
The Weldforce 205MST is not your standard portable multi-function MIG. Boasting 200A @ 30% output, this unit has the grunt and an impressive range of features to get the job done and save time and money.

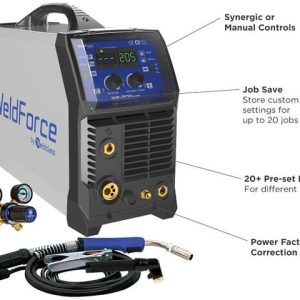

Job save & recall, geared drive system, fan-on-demand to reduce dust intake, spool gun ready, advanced Stick and TIG functions.
Comes with 4m heavy-duty Euro-fit MIG torch, 2-stage gas-saving regulator, 0.8/0.9mm drive rollers for gas, gasless & aluminum wire, 4m earth and stick leads, 15A plug fitted, cable strap, and large carry bag.
Work in manual mode, or synergic (select the material and thickness, and the machine takes care of the settings).
PFC technology means the WF-205MST is incredibly power efficient, giving it more duty cycle and making it an excellent choice for use on long extension leads (up to 100m) and/or use on generators.
200A max MIG output @ 30% duty cycle.
Weld up to 10 mm Mild Steel (max MIG capacity).
Fitted with 15A 240V plug.
Power Factor Correction (PFC) – reduced power draw, increased duty-cycle, ideal for long leads & generators.
20+ Pre-set Programs – for different materials.
Job Save – store custom settings for up to 20 jobs.
Geared Wire Drive System.
Takes 1 kg (D100mm) or 5 kg (D200mm) spools.
Spool Gun Ready.
Generator Compatible – min 8 kva, ideal 10+ kva.
Fan-on-Demand – reduces dust intake.
Stressed-Tested – to 440V & over-specified componentry for reliability.
Specifications:
Brand: WELDCLASS Weldforce
Part Number: WF-06166
Function: MIG, TIG, Stick
Maximum Amps: 200 Amp
Dimensions: L550 x W215 x H415mm
Weight: 17kg
Warranty: 2 years
Welding Current / Voltage Output: 40A/16V – 200A/24V
Duty Cycle (40 C):
200A @ 30%
145A @ 60%
110A @ 100%
Wire Sizes / Capacity: 0.6, 0.8, 0.9, 1.0mm
TIG:
Welding Current Output: 10 – 200A
Duty Cycle: 200A @ 35%
TIG Tungsten Electrode Size / Capacity: 1.6 – 2.4mm
Stick (MMA):
Welding Current Output: 10 – 200A
Duty Cycle: 200A @ 25%
MMA Electrode Size / Capacity: 1.6 – 4.0mm
