  7. 3M Speedglas Welding – Helmet 9100xxi Fx, Adflo Papr, Hose Cover,backpack – 547726

3M Speedglas Welding – Helmet 9100xxi Fx, Adflo Papr, Hose Cover,backpack – 547726

SKU: 547726 Bundle


  • New Adflo is super light with a rapid charge
  • Up to 8 hours of powered air respiratory protection
  • 2 adjustable airflow settings 170/200 lts/min
  • 1/1/1/1 Classification for Supreme Optical Clarity
  • Flip Up Functionality
  • Speedglas True-View Colour View
  • Advanced TST (TIG Sensor Technology)
  • Largest Mask Viewing Area Available
  • Unrivalled Arc Detection and switching
  • Auto-On: Programmed Memory
  • Set and Forget – Memory Functions
  • Weld, Cut, Grind, Hidden Arc, Outdoor, Passive, Tack
  • Shades 5, 8, 9-13 with a light shade of 3
in stock

Request Price Match

Please include full website address

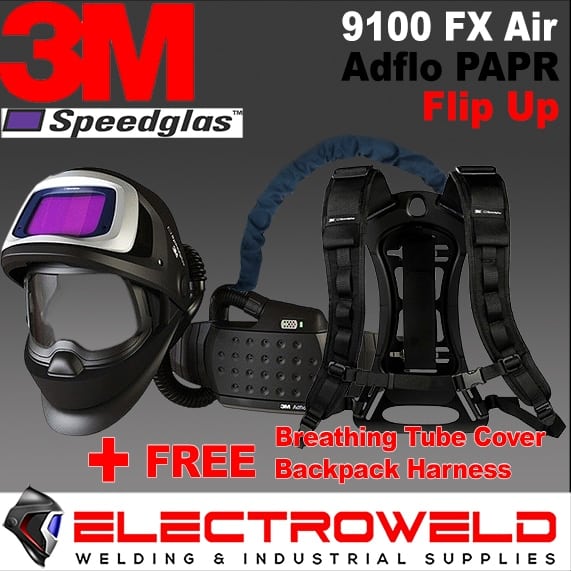

3M Speedglas Welding Helmet 9100XXi FX ADFLO Bundle Includes:

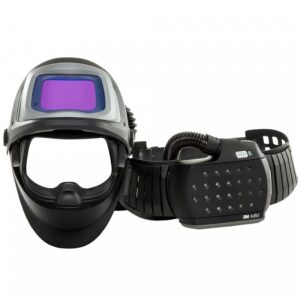

1 x 3M Speedglas™ Welding Helmet 9100XXi FX – Flip Up
Plus Complete ADFLO System with Standard Battery
1 x 3M Speedglas Proban Breathing Tube Cover for Adflo PAPR
1 x Backpack for the Adflo PAPR
1 x 9100xxi Adflo Carry Bag
3M Speedglas Welding Helmet 9100XXi FX With ADFLO PAPR With 3 Year Warranty.

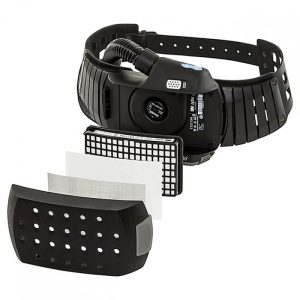

New upgraded Adflo is super light with rapid charge giving welders up to 8 hours of powered air respiratory protection.
Required minimum protection factor of 50.
Two adjustable airflow settings 170/200 lts/min.
Super comfortable welding face seal follows the contours of both the helmet and the face to provide a positive pressure seal from pollutants. The exclusive airflow pattern of the respiratory welding mask evenly distributes filtered air throughout the entire breathing zone of the welder.
Self-Adjusting Breathing Hose: The Quick Release Swivel (QRS) allows for one-handed connection and release.
This helmet features a 1/1/1/1 classification, the highest possible classification for optical clarity.
Speedglas True-View has literally changed the way welders see, making what you see through the welding lens appear lighter, more detailed and colourful.
Huge Clear & Curved Grinding Visor: A smooth flip-up function reveals a huge 170 x 100 mm clear grinding visor with 180-degree vision.
Previously hidden peripheral hazards (beams, obstacles and other workers) are now visible through two, shade 5 side lenses (conventional shade 13 protection).
Advanced TST (TIG Sensor Technology) Welding lens photo-sensors capable of detecting an arc down to an industry-leading 1 amp with a centre sensor for TIG applications.
With Auto-On your welding helmet is instantly ready to weld; programmed to your last used welding setting.
True Colour High Definition Filter Technology greatly improves the optics allowing the user to see a full spectrum of colours. Also Assists with alleviating eye fatigue making it safer for extended periods of welding
Set and Forget: a welding helmet that remembers you. Pre-set your most frequently used welding settings and with the press of the external button, you can seamlessly switch between different welding applications.
With shades 3, 5, 8, 9-13 and multiple mode settings you can weld, cut, grind and tack, indoors and outdoors even with a completely hidden arc. Makes it ideal for Gas cutting, Plasma cutting, Low amp TIG operation and MIG welding.
The huge 9100XXi FX welding lens combined with the peripheral SideWindows gives you the largest auto welding helmet viewing area available on the market.
Automatic sleep mode shuts LED off when the helmet is placed into its storage bag or in darkness for battery conservation.
All Speedglas 9100 lenses have custom-designed multi-function programmed logic chips that minimise the number of discrete surface-mounted components; leading to improved reliability and longevity.
Built-in holder for magnifying lenses makes attaching the lens easier and optimises the position for better vision.
The silver front on a Speedglas auto-darkening welding helmet is not just a design feature, it also reflects heat from the weld keeping you cool and comfortable.
All Speedglas welding helmets are made in Sweden with every lens still checked by hand.
Features Proban Hose Cover
Fire retardant proband breathing tube cover to suit Speedglas G5-01 and 9100 series, 3M Adflo as well as Versaflo V-500E breathing tubes.
Extends the life of your 3M Speedglas breathing tube.
Protects the tube from molten metal and sparks.
Helps protect your 3M Speedglas Adflo hose from general wear & tear.
Features Harness Backpack
This backpack secures the 3M™ Adflo™ PAPR system to the back of the user, adding comfort and evenly distributing weight.
Adflo Backpack is suitable for long periods of working when respiratory protection is required.
The harness allows the Adflo system to access cleaner air, away from the welding pool, arc and fumes also protecting it from sparks, spatter and other materials.
0/5 (0 Reviews)
Part Number: 547726
Stick: Yes
MIG: Yes
TIG: Yes (industry-leading detection down to 1 Amp)
Speedglas TrueView Welding Lens: Yes
View Size (Mm): 107 x 73 (+side windows)
Hidden Arc Mode: Yes
Side Window Feature: Yes
Classification: 1/1/1 & TrueView
Power Control: Fully Automatic
Light State: TrueView Shade 3
Auto Darkening Lens Classification: 1/1/1 & TrueView
Dark State: 5, 8, 9-13
UV Protection: Shade 13 (permanent)
Time From Light To Dark: 0.1 ms (+23 C)
Time From Dark To Light: 40-800 ms
Comfort Exhaust Vents: No (positive pressure seal for powered air)
Shade Control: Yes
Grinding Feature: Large Clear Grinding Visor (Flip-Up)
Head Harness: Custom fit, two crown straps with ratchet mechanism
Required Minimum Protection Factor: 50
Air Flow Level: 170 & 200 l/min
Adflo Battery Run Time: 8 hours
Adflo Battery Charge Time: 1-hour rapid charge (80% capacity), 4.5 hours complete
Eye Protection – AS/NZS1338.1 (Auto-Darkening)
Face Protection – AS/NZS1337.1 (High Impact)
Respiratory Protection – AS/NZS1716
Warranty: 3 Years
Specifications Tube Cover:
Brand: 3M Speedglas
Part Number: 834018
Suits: 9100 welding helmet series / Speedglas G5-01 / Versaflo M-Series breathing tubes
Specifications Backpack:
Brand: 3M Speedglas
Part Number: 954015
