Cigweld Weldskill 205 Ac/dc Tig/stick Welder – W1008205

SKU: W1008205

$1,307.00 $1,241.65

To check out the spare parts for this machine, please click here! https://www.electroweld.com.au/shop/category/spare-parts-cigweld-weldskill-205-acdc

in stock

Request Price Match

Please include full website address
null

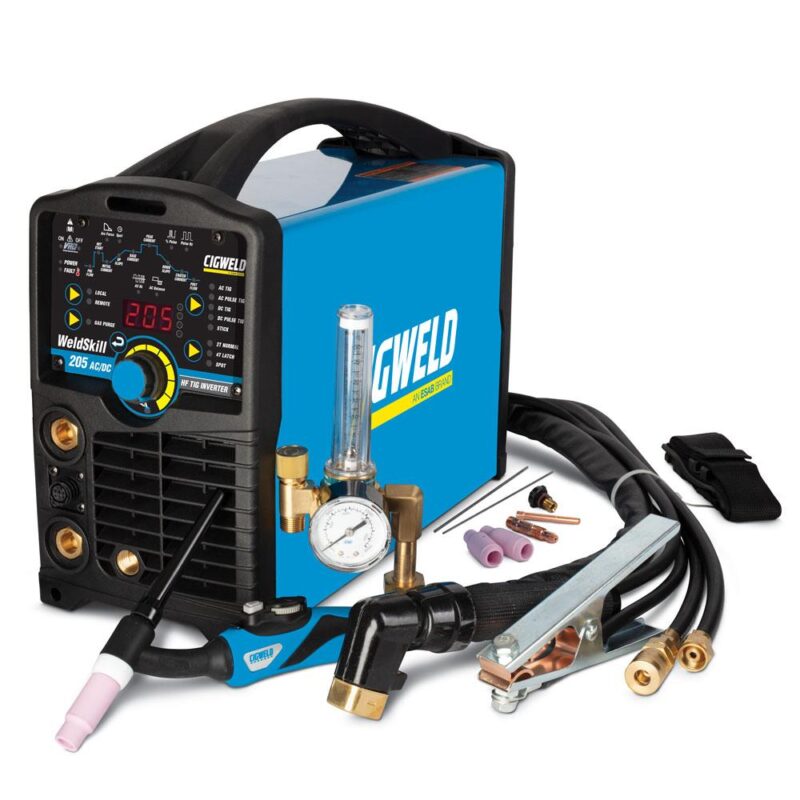

CIGWELD WELDSKILL 205 ACDC

The CIGWELD WeldSkill 205 AC/DC has taken the same great features and robust power from its predecessor and compacted it down into a smaller, lighter and more portable TIG Inverter that weighs a slight 12kg.

The 205 AC/DC is a 15 Amp 240 volt, digitally controlled, High-Frequency AC/DC TIG (GTAW) and Stick (MMAW) inverter. This unit is specifically designed for budget-conscious user who doesn’t want to sacrifice quality or weld results. With its compact casing and IP23S rating the 205 AC/DC is ideal for indoor or outdoor use around the workshop and is easy to carry and manoeuvre into hard-to-reach places when doing light fabrication and maintenance of mild steels, stainless steels and aluminium.

In TIG mode the unit has all the features required to customise your welding preferences – High Frequency (HF), Up/Down Slope, Pre/Post Flow, 2T/4T Trigger Function, Spot Mode and Gas Purge for AC or DC TIG welding. When welding in AC only, Frequency and Wave Balance can be refined with impressive adjustability and when operating in Pulse Mode the user has full flexibility to adjust Frequency, Width and Peak Current.

In Stick mode, the 205 AC/DC features VRD, Anti-Stick and Hot Start and can weld with up to 4mm electrodes.

The CIGWELD WeldSkill 205 AC/DC comes as a complete kit with an 8m Remote Control TIG Torch, Argon Regulator/Flowmeter, 4m Electrode Holder and Work Clamp and a TIG Accessory Kit with tungstens, nozzles, collets etc. to get you up and welding in no time..

  • Duty Cycle HF TIG – 205A @ 20%
  • Duty Cycle STICK – 160A @ 20%
  • 15A Supply Lead
  • Light and portable 12kg power source
  • Dimensions: H 324mm x W 176mm x D 430mm)
  • Can TIG Weld up to 8mm Aluminium Plate
  • Can STICK weld with up to 4mm electrodes
  • Pulse: Pulse Frequency / Pulse Width / Peak Current
  • AC Frequency / AC Wave Balance
  • Pre-Flow/Post-Flow Adjustment (TIG mode only)
  • Gas Purge
  • Spot Weld
  • Up Slope / Down Slope
  • Trigger-Lock (2T, 4T)
  • Initial Current (4T)
  • Crater Current (4T)
  • Over-Temp Protection
  • Anti-Stick (STICK)
  • Hot Start (STICK)
  • Digital Meter
  • VRD <35DC (Voltage Reduction Device)
  • IP23S (Indoor and Outdoor use)
  • 3-year warranty**
    **(refer to operating manual for further details)

Current Range
10-205A (TIG Mode), 10-160A (STICK Mode)

Dimensions
324H x 176W x 430D mm

Duty Cycle
HF TIG: 205A @ 20%, 18.2V (40C, 10mins)
STICK: 160A @ 20%, 26.4V (40C, 10mins)

Generator Requirement
10kVA

Open Circuit Voltage
(VRD On) <35V, (VRD Off) 63V

Processes
AC/DC HF TIG (GTAW), Stick (MMAW)

Supply Voltage
240V, +/- 15%, 50/60Hz

Weight
12kg (Power Source), 22.5kg (Package)

Supply Plug & Lead
15A

Protection Class
IP23S

Standards
AS 60974.1-2006, IEC 60974-1
