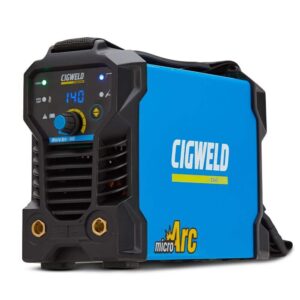

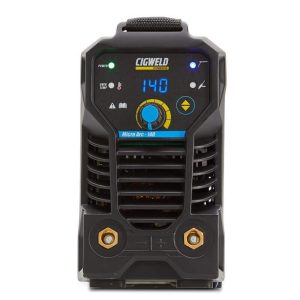

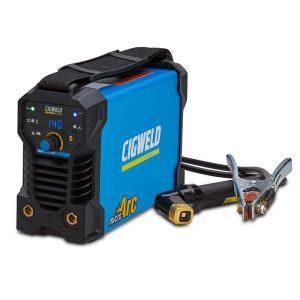

Cigweld Weldskill MicroArc 140A Tig DC Welder, Helmet, Gloves, Hammer W1008162

SKU: W1008162B

$449.00

The MicroArc140 as the name suggests is an extremely neat and compact welding inverter. Weighing in at a slight 3kg in the hand and sized at only 100mm wide and 185mm High on your bench, this little gem is conveniently thrown over the shoulder and taken wherever you need to go. With adjustable welding current from 10 to 140 amps, and adjustable Start and Arc Force, you have the flexibility to run standard general-purpose 2.5mm electrodes for light gauge work and 3.2mm electrodes for heavier metals.

in stock

Request Price Match

Please include full website address
null

What You Get:

Cigweld Weldskill MicroArc 140A Tig DC Welder bundle includes:

  • Weldskill MicroArc 140 Power Welder, W1008162
  • WeldSkill Essential Auto-Darkening Helmet 9-13 Black
  • Chipping Hammer Spring Handle, 646215
  • Heavy Duty Welding Gloves – Large, 646755
  • WeldSkill GP 2.5mm 1kg, WEG1025
  • Wire Brush 4 Rows Straight Steel Bristles, 646363
  • 3m Twistlock Electrode Holder Lead
  • 3m Work Lead
  • Shoulder Strap

Features:

  • The lift TIG function provides smooth starting and running characteristics across a broad range of applications
  • Adjustable hot start improves the arc start characteristics of stick electrodes
  • Adjustable arc force assists when using stick welding in a tight corner or joint fit-up
  • Micro size & portability, the micro-arc is compact and only weighs 3kg and comes with a carry strap for easy transportation
  • Suitable for 2.0mm, 2.5mm, and 3.2mm electrode sizes. Suitable for all electrode types (except AWS E6010 Cellulose)
  • Anti-stick helps to prevent the stick electrode from sticking to the workpiece
  • The twist lock electrode holder allows the electrode to be locked securely in place
  • Over temperature protection, cut-out protection has been fitted to the power source
  • Bright Blue LEDs allow for accurate settings and improved visibility of the welding amperage even outdoors & in bright light conditions
0/5 (0 Reviews)
  • Brand: CIGWELD
  • MPN: W1008162 / PP.MA140S23
  • Barcode: 9310574069527
  • Certification: AS 60974.1-2020
  • Welder Type: Stick & Lift TIG Multi Process Inverter
  • Product Length: 250 (mm)
  • Product Width: 100 (mm)
  • Product Height: 185 (mm)
  • Power Source Mass: 3kg
  • Cooling: Fan Cooled
  • Number of Phases: Single Phase
  • Protection Class: IP21S
  • Nominal Supply Voltage: 240V AC ± 10%
  • Nominal Supply Frequency: 50/60 Hz
  • Welding Current Range: 10-140A
  • Nominal DC Open Circuit Voltage: 71V
  • Effective Input Current (I1eff): 10Amps
  • Maximum Input Current (I1max): 26Amps
  • Generator Recommendation: 6.0 kW (7.5 kVA @ 0.8 PF)
  • STICK (MMAW) Welding Output, 40ºC, 10 Min.:
    • 140A@15%, 25.6V
    • 70A@60%, 22.8V
    • 54A@100%, 22.2V
  • TIG (GTAW) Welding Welding Output, 40ºC, 10 min:
    • 180A @ 15%, 15.6V
    • 90A @ 60%, 13.2V
    • 70A @ 100%, 12.5V
  • Warranty: 1 Year Warranty (on Power Source)
