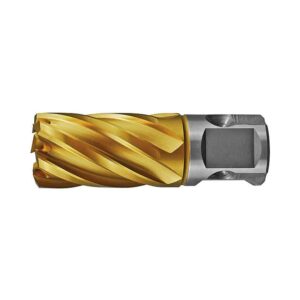

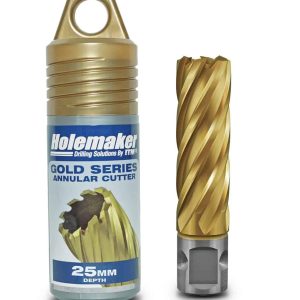

HOLEMAKER Gold Series Annular Cutters are an industrial quality cutting solution preferred by the industry for their exceptional cutting performance and life. The 75mm depth gold series annular cutters, with titanium nitride coating, are made with M2AL high-speed steel alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life. Multi-cut geometry provides smooth and fast cutting, with decreased chatter. This also increases the cutter’s ability to remove the swarf away from the cut and helps to enhance centering.
Price range: $170.00 through $295.00
| What You Get: |
|---|
| 1 x 75mm Depth Annular Cutter, Gold Series |
| Choose Diameter:Â 18mm / 19mm / 20mm / 21mm / 22mm / 23mm / 24mm / 25mm / 26mm / 27mm / 28mm / 29mm / 30mm / 31mm / 32mm |
| Features: |
|---|
|
The Titanium Nitride coating significantly increases the tool life by providing the following benefits:
– Increased surface hardness to 85HRC.
– Ceramic surface, reducing friction by up to 30%.
– Especially resistant to cold welding.
– Suitable for cutting a wide range of materials.
|
|
M2AL high-speed steel alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
|
| The state-of-the-art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance while maintaining a softer body that is less susceptible to breakage than standard high-speed steel cutters. |
| Multi-cut geometry provides smooth and fast cutting, with decreased chatter. This also increases the cutter’s ability to remove the swarf away from the cut and helps to enhance centering. |
| Fully ground with an internal relief feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements. |
| 19.05mm (3/4″) universal shank. |
| Featuring 2 flat sections to suit most magnetic base drilling machines. |
