- Simple Step By Step Digital Control
- Latest 43khz Inverter Technology
- Full Tig Functionality
- Ac Square Wave Balance
- Optimized Auto Protection Of The Power Input
| What You Get: |
|---|
|

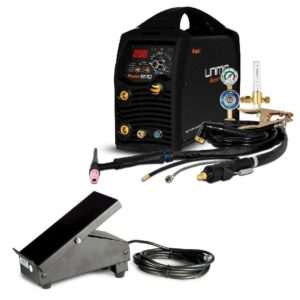

RAZOR 200 AC/DC Welder Bundle Includes:
|
|
1 x RAZOR 200 AC/DC TIG/ STICK Welder (with Life Time After Sales Machine Support)
|
|
1 x Unimig 200 AC/DC Foot Control (UTJRFC-4)
|
|
1 x UNIMIG Welding Trolley
|
|
1kg x UNIMIG ER70S-6 TIG Welding Rods, 1.6mm
|
|
1kg x UNIMIG ER70S-6 TIG Welding Rods, 2.4mm
|
|
1kg x UNIMIG 5356 Aluminium TIG Welding Rods, 2.4mm
|
|
1kg x UNIMIG 316L Stainless TIG Welding Rods, 2.4mm
|
|
1 x 4m High-Performance T2 TIG Torch
|
|
1 x 4m Twist Lock Electrode Holder
|
|
1 x 300 Amp Earth Clamp & Lead
|
|
1 x Argon Flowmeter Regulator
|
|
1 x 2m Gas Hose Complete with fittings
|
|
1 x Operating Manual
|
| Features |
|---|
| RAZOR™ 200 AC/DC TIG/ STICK Welder with 3 Year Warranty |
| Full TIG functionality, offering a simple step by step digital control of functions and parameters providing complete professional control. |
| Digital set of Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time with the choice of 2T or 4T trigger function allows control of the welding process at a professional level from start to finish. |
| Digital Pulse Control gives full parameter setting of Peak & Base Current, Pulse Frequency & Pulse Width providing control of heat input, penetration & distortion. |
| AC Square Wave Balance gives control of the electron flow at the tungsten, the AC TIG arc can be adjusted from maximum oxide-layer cleaning on aluminium through to a deeper penetrating weld. |
| Remote Control Interface provides optional remote amperage control at the torch or foot-pedal control. |
| DC MMA welding delivers a smooth and stable arc for easy welding of electrodes producing high-quality welds including cast Iron, stainless and low hydrogen. |
| Arc Ignition and Arc Force control allows you to set the ideal arc condition no matter what electrode you choose. |
| Optimised auto protection of the power input provides auto shut down of the machine when large scale fluctuations occur. |
| Unique air channel design increases the heat dissipation of the power device, control circuits, minimises dust absorption, thereby greatly improv-ing longevity and reliability. |
| Intelligent digital control of the main functions are realised by software providing ease of operation and high accuracy, a software upgrade is possible by simple download function. |
|
Latest 43KHz Inverter Technology
AC/DC HF TIG/MMA Function
Arc Ignition HF Oscillation
AC Square Wave 20 – 250Hz
AC Balance Control Adjustable
Pulse Frequency 0.2 – 200Hz
Pulse Width 10 – 90%
Base Current 5 – 200A
Up Slope 0 -10 sec
Down Slope 0 -15 sec
Pre Gas 0 – 3 sec
Post Gas 0.5 -15 sec
Trigger Function 2/4T-Spot
MMA – Arc Ignition Current Automatic
Arc Ignition Time Automatic
Arc Force Current 0 – 40A
Remote Amperage Foot & Hand Control
|

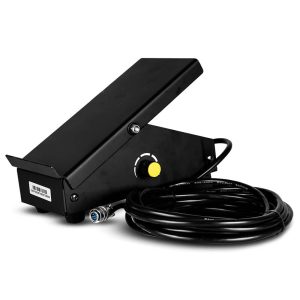

| Features of Unimig 200 AC/DC Foot Control |
|
Remote amperage controls allow for the welding current to be adjusted remotely from the welding machine during welding.
|
|
Excellent for fine-tuning of TIG applications.
|
|
Comes with standard 10k Potentiometer.
|
|
Sturdy metal construction.
|
|
Ergonomic angle for pedal control.
|
|
Strong return spring.
|
|
Current limiting control.
|
| Features of Welding Trolley |
|
The UNIMIG Welding Trolley for Small Machines is ideal if you are tired of moving your welding and gas gear around the workshop manually. With easy setup, this trolley can perfectly fit your setup, while also holding a D or E size gas cylinder on the back.
|
|
An upward angle on the top also ensures that you can easily change the settings on your welder on the fly, and the middle shelf can be used for accessories.
|
|
Made from a sturdy metal construction, free-moving front castor wheels and solid rear rubber wheels means you will get a long lifespan from this trolley.
|
|
Suits smaller machines.
|
| Features of ER70S-6 Welding Rods
|
| ER70S-6 TIG Welding Rods are an unalloyed welding rod for TIG welding of on all grades of pipe steels, carbon steel, various chrome molly steels, home use and structural steel works. |
| This rod also suits welding thin, galvanized or electro-galvanized plates and produces very limited spattering due to its addition of titanium and zirconium. |
| ER70S-6 TIG Welding Rods must be welded using pure Argon (Ar) shielding gas. |
| Thin and homogeneous copper coating increase resistance to rusting. |
| E70S-6 has the most deoxidizers for highest quality welds, and due to higher silicon is more fluid than E70S-2. |
| Individually packed, labeled, and transported in a sturdy tube or box which ensures the wire stays in great condition during transport. |
| Features of 5356 Welding Rods
|
| UNIMIG 5356 Aluminium TIG Welding Rods are a triple shaved TIG wire for the purpose of welding cats and wrought aluminium and specifically the 3000, 5000 & 6000 series. |
| 5356 offers outstanding corrosion resistance when exposed to salt water and hence is sometimes referred to as “marine grade” because it is widely used in the marine industry. Commonly found in general fabrication applications as well. |
| The major element in 5356 wire is 5% magnesium. |
| The wire has excellent weldability and corrosion resistance. |
| These high purity fillers have sensational flow characteristics and produce exceptional welds that are free of cracks, Fusion defects and other problems which inferior wires are prone to. |
| X-Ray Quality. |
| Low Fume Factor. |
| Typical applications include marine, tubing, thin sheet, tanks, checker plate& general aluminium fabrication. |
| Features of 316L Welding Rods
|
| Stainless steel electrode specifically used for welding 316 and 316L as well as other 300 series stainless steels. |
| Excellent arc stability and concentrated arc. |
| High penetration and less spatter. |
| Welding 300 series stainless steels. |
| Suitable to weld 301, 302, 303,304, and 304L. |
