$1,949.95 $1,852.45
Out of stock
| WHAT YOU GET: |
|---|
|

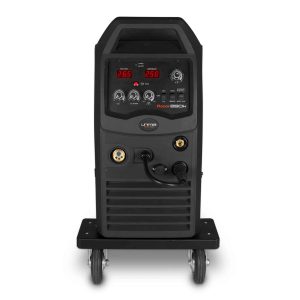

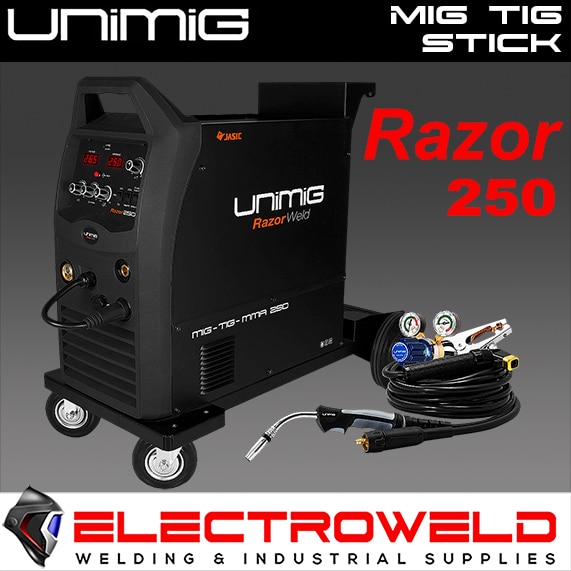

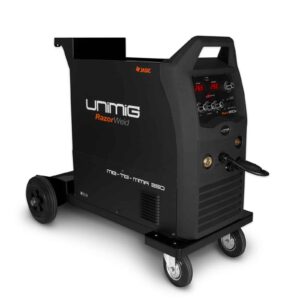

1 x RAZOR™ 250 Compact MIG/TIG/STICK Welder – (with Life Time After Sales Machine Support)
Please note, it is standard that these welders do not come with a plug. We will supply and fit the 15amp plug before we ship, so allow a day to do this before shipping.
|
|
1 x 4m SB24 MIG Torch
|
|
1 x 4m Twist Lock Electrode Holder
|
|
1 x 300 Amp Earth Clamp & Lead
|
|
1 x Twin Gauge Argon Regulator
|
|
1 x 2 Metre Gas Hose Complete with fittings
|
|
1 x Operating Manual
|
The UNIMIG 250K is an inverter-based multifunction MIG welding machine with added MMA and TIG functions. The MIG function allows you to weld with both Gas Shielded and Gasless wire applications. Easy stepless adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent, professional welding results.
Wire inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire out ready for the next weld. An additional feature is the Spoolgun ready function that allows the simple connection of the PLSP240Amp Spoolgun for the use of thin or softer wires that don’t have the column strength to feed through standard MIG torches, such as an aluminium wire. Added MMA welding capability delivers easy and high-quality welding using electrodes, including cast Iron, stainless and low hydrogen. Connection of the 26V TIG torch provides quality DC TIG with Lift Arc start for welding of steel, stainless steel and copper.
The UNIMIG 250K is the ideal machine for light to medium industrial and panel work. The machine is single phase 240V and also portable and perfect for workshop use. The MIG function provides superb arc characteristics when using either Gas Shielded or Gasless Wires. The machine features an adjustable Burnback control and easy to use panel layout to get your job done faster.
The machine is also a very capable MMA (Stick) welder capable of running most MMA Electrodes up to 4.0mm. An added feature of Hot Start helps when striking an Arc to minimise the Electrode sticking to the workpiece.
With the machine being Spool Gun ready a UNIMIG Spool Gun is available if you want to run Aluminium wire without the changeover in the torch, liner and drive roller. The Spool Gun is an ideal way to use softer wires and not have to purchase larger spools of wire for small jobs.
The other option for running softer wires is via a Push Pull gun. The machine is capable of running a 6-metre Push Pull gun which is ideal for Aluminium work adding yet another feature to the capabilities of this machine.
The UNIMIG 250K is also a DC TIG welder with a Lift Arc function. DC TIG will allow welding of materials such as Mild and Stainless Steel as well as Bronze, Copper and Chrome Moly’s.
| FEATURES: |
|---|
| – RAZOR™ 250 Compact MIG/TIG/STICK Welder With 3 Year Warranty |
| – This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. |
| – Spool Gun ready, so you have the option of attaching a spool gun to run softer core wires such as Aluminium MIG wire. |
| – Four Geared Roller Drive – providing the most consistent and smoothest wire feed. |
| – Full protection with Voltage Reduction Device – Prevents voltage overloading. |
| – The MIG function allows you to weld with both Gas Shielded and Gas-less wire applications, providing MIG welding capabilities across a range of metals including mild steel, stainless steel and aluminium. Excellent MIG welding with CO2 gas & mixed gas |
| – Step-less adjustment of voltage and wire feed control ensure easy setting of welding parameters. |
| – Capable of running a 6-metre Push-Pull gun which is ideal for aluminium work, providing the smoothest wire speed, |
| – Wire Inch gives easy feeding of the wire during set up without gas wastage. |
| – The machine is also a very capable MMA (Stick) welder capable of running most MMA Electrodes up to 4.0mm. An added feature of Hot Start helps when striking an Arc to minimise the Electrode sticking to the workpiece. MMA delivers easy electrode welding with high-quality results, including cast Iron, stainless steel and low hydrogen. |
| – Burn Back adjustment leaves the wire stick out ready for the next weld. |
| – Large wire spool capacity fits 200mm and 300mm wire spools. |
| SPECIFICATIONS: |
|---|
| Part Number: KUMJR250K-SG |
|
Supply Plug: Single Phase (32 AMP Recommended) or 15 AMP
|
|
Primary Input Voltage: 240V Single Phase
|
| Rated Input Power: 11.8 kVA |
| Ieff AMPS: 29.0 |
| Rated Output: 30A/15.5V – 250A/26.5V |
|
No Load Voltage: 52
|
| MIG Welding Current Range: 30-250A |
| MIG Duty Cycle @40ºC: 35% @ 250A |
| MIG Wire Spool Size (Kgs): 5kg / 15kg |
| MIG Wire Size Range: 0.6-1.0mm |
| MIG Welding Thickness Range: 1-12mm |
| Drive Roller Size: 30/22 (x2) |
|
TIG Function Type: DC Lift Arc
|
|
TIG Welding Current Range: 10-220A
|
|
TIG Duty Cycle@ 40°C : 35% @ 220A
|
|
TIG Welding Thickness Range: 1-6mm
|
|
Stick Welding Current Range: 10-220A
|
|
Stick Duty Cycle@ 40°C: 35% @ 220A
|
|
Stick Electrode Range: 2.5-4.0mm
|
|
Stick Welding Thickness Range: 12mm
|
|
Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
|
|
Dimensions(Mm): 900 x 400 x 670
|
|
Weight: 58kg
|
|
Warranty: 3 Years
|
