UNIMIG Razor Tig 200 ACDC Welder + Water Cooler + Torch +Coolant AC/DC U12002K

SKU: U12002K-Bundle

$3,369.00 – $3,469.00

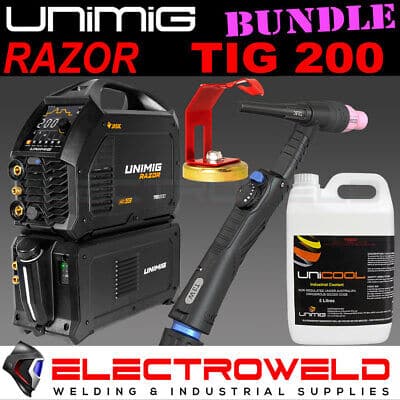

Bundle includes UNIMIG Razor Tig 200 ACDC Welder, UNICOOL 5L COOLANT, Water Cooler, TIG Torch, Torch Holder. Effortlessly weld any metal with the high-frequency AC/DC TIG. ACDC – Weld every kind of metal. With the ability to run on an Alternating Current, you’re able to weld aluminium as effortlessly as mild and stainless steels. Switch your AC welds to suit your needs with the choice of four waveforms. UNICOOL Coolant is a balanced recirculation system and welding torch coolant. The perfect accessory to maximise your TIG welding performance, especially at high amperages.

in stock

Request Price Match

Please include full website address
Wishlist
null
What You Get:
UNIMIG Razor Tig 200 ACDC Welder Bundle Includes:
1 x UNIMIG Razor Tig 200 ACDC Welder, U12002K
1 x Unimig RAZOR TIG 200 AC/DC Water Cooler, U12004
1 x 8m T2 TIG Torch
1 x UNIMIG Water-Cooled TIG Torch (Choose Length: 4m / 8m)
1 x UNICOOL 5 Litre Coolant
1 x UNIMIG Magnetic Welding Torch Holder
1 x 4m Twist Lock Electrode Holder
1 x 4m 300 Amp Earth Clamp & Lead
1 x Argon Flowmeter Regulator
1 x 1.8m Gas Hose with fittings
1 x Operating Manual
Features:
Effortlessly weld any metal with the high-frequency AC/DC TIG.
The ultimate combination of AC and DC available with Mixed Arc settings.
Switch your AC welds to suit your needs with the choice of four waveforms.
HD Backlit Interface – This next generation interface panel is bright and easy to read in any environment.
PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.
ACDC – Weld every kind of metal. With the ability to run on an Alternating Current, you’re able to weld aluminium as effortlessly as mild and stainless steels.
High-Frequency TIG – Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Multiple AC Waveforms – Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.
Mixed AC/DC – Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld thicker materials.
Pulse TIG – Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.
Foot Control Ready – The perfect accessory, easily adjust your amperage to suit every weld as you go without disrupting your torch movement.
Smart Fan – diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Advanced MMA Features – features adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.

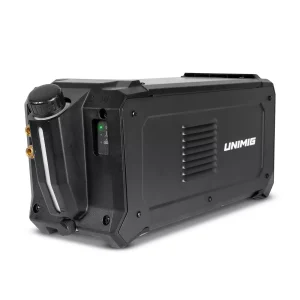

Water Cooler Features:
The perfect accessory to maximise your TIG welding performance, especially at high amperages.
When combined with the T3W Water-Cooled TIG Torch, which uses our Bi-Flow™ Technology – high capacity cooling chambers that remove excessive heat at the source – you get greater performance from the TIG torch.
Using The Water Cooler:
Unscrew the screw cap for coolant container.
Pour coolant into the inlet until it reaches the ‘FULL’ marker on the coolant viewing window. The maximum coolant capacity of this water cooler is 3.5L. Do not run water cooler if the coolant level is below ‘EMPTY’.
Fasten the screw cap for coolant container.
Connect the red coolant return cable into the red coolant connection. Connect the blue coolant flow cable into the blue coolant connection.
Connect the power plug into the water cooler power outlet on the back of the RAZOR TIG 200 AC/DC.
Once the machine is powered on and set up for welding, push the water cooler button on the RAZOR TIG 200 AC/DC to turn the water cooler unit ON.

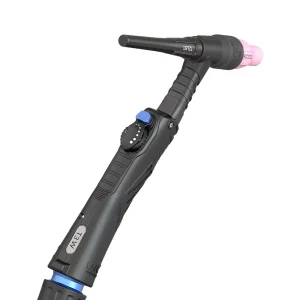

TIG Torch Features:
Force Cool Technology: A highly effective series of passages and wells force cool the collet, maximising conductivity and extending consumable life.
Bi-Flow Technology: High capacity cooling chambers remove excessive heat at source, allowing greater performance from a smaller body.
Tungsten Release System: Trouble free extension of the electrode with a 180° twist of the back cap. There is no need to remove any other wear parts to extend the electrode.
Flex-Neck Torch Head: Arc Torchology Torches come with a flexible torch head as standard. Simply bend your torch head into any angle you need, allowing you to access tight and cramped spaces.
Up to 20x longer consumable life.
More power from a lighter torch.
Superior life & better performance.
UNICOOL 5L COOLANT Features:
UNICOOL Coolant is a balanced recirculation system and welding torch coolant.
It has been formulated for use with MIG Welding, TIG Welding, Laser Welding, Laser Cutting, Plasma Welding and Robotic Systems.
Its thermal stability properties make it an excellent choice for use with high-performance torches.
When used in conjunction with a regular coolant system maintenance program, UNICOOL will eliminate damaging mineral deposit build-up and will prevent clogging of the cooling system.
This coolant will extend the life of pumps, seals, gaskets and prevent costly downtime.
It contains rust and corrosion inhibitors that will help extend the life of the cooling system components.
This coolant is classified as a non-dangerous product.
Torch Holder Features:
Holds any MIG or TIG torch secure while not in use.
The powerful magnet on the stand secures to your workbench or metal object, ensuring the safety of the torch.
This stand can conveniently be used vertically or horizontally.
Protects torch head from inadvertent damage.
Attaches to steel workbenches, steel work pieces, welding trolleys.
This item holds the mig or tig gun so it does not fall and break the ceramic cup.
Heavy-duty construction.
Easily Holds up to 10kg of downward force
Holds all styles and sizes of guns.
Durable enamel finish with zinc-coated base.
*It is not used for stick welding and does not need to be isolated.
0/5 (0 Reviews)
Brand: UNIMIG
Part Number: U12002K
Dimensions: 500×170×340mm
Weight: 11.7kg
Primary Input Voltage: 240V Single Phase
Supply Plug: 10 A
Ieff: 9.5 A
Rated Output: 5A/20.8V – 200A/18V
No Load Voltage: 65V
Protection Class: IP23S
Insulation Class: H
Minimum Generator: 9.0 (kVA)
Dinse Connectors: 35/50
Standard: AS/NZ60974-1
TIG Weld Material Type:
Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper,
Silicon Bronze, Titanium
MMA Weld Material Type:
Mild Steel, Stainless Steel, Cast Iron
Warranty: 5 Years
TIG:

TIG Arc Ignition Type: High Frequency, Lift Arc
TIG Process Type: Pulsed AC, Pulsed DC, Mixed AC/DC
DC TIG Welding Current Range: 5-200A
AC TIG Welding Current Range: 20-200A
TIG Duty Cycle @ 40°C:
20% @ 200A
60% @ 115A
100% @ 90A
TIG Welding Thickness Range: 1-8mm
STICK:
STICK Welding Current Range: 20-160A
STICK Duty Cycle @ 40°C:
15% @ 160A
60% @ 80A
100% @ 62A
STICK Electrode Range: 2.5-4.0mm
STICK Welding Thickness Range:
2-10mm
UNICOOL 5L COOLANT Specifications:
Part No: UNICOOL
Volume: 5L
Water Cooler Specifications:
Brand: Unimig
Part Number: U12004
UPC: 9333521034003
Type: Water Cooler
Suits: RAZOR TIG 200 AC/DC Welder
TIG Torch Specifications:
Brand: UNIMIG
Part Number:
4m= T3W-3KHL-4M
8m= T3W-3KHL-8M
Output Current: 400A (Maximum)
Cooling Method: Water Cooled
Duty Cycle:
DC: 100% at 400A
AC: 100% at 280A
Dinse Size: 35/50
Electrode Size: 1.0-4.0mm
Water Cooler Specs:
Minimum Water Flow: 1.5L/min
Minimum Water Inlet Pressure: 3.0 Bar
Maximum Water Inlet Pressure: 5.0 Bar
Maximum Water Inlet Temperature: 50°C
Minimum Cooling Power: 900W
Standard: EN60974-7
Torch Holder Specifications:
Part No: UMMTH
Material: Rare Earth Metal Magnet
