Unimig Viper 182 Mk Ii Bundle, U11002k – Welder, Helmet, Trolley, Gloves Wire, Consumables

SKU: U11002K Bundle


Includes Welder, Helmet, Trolley, Wire, Gloves, Consumables
Added Gear Wire Drive
Spool Gun Connection
VRD: Voltage Reduction Device
Burnback Adjustment
Wire Inch
Thermal Overload Protection
10 Amp Plug
Gas And Gasless
Step-Less Adjustment
2 Year Warranty

Out of stock

Out of stock

Request Price Match

Please include full website address

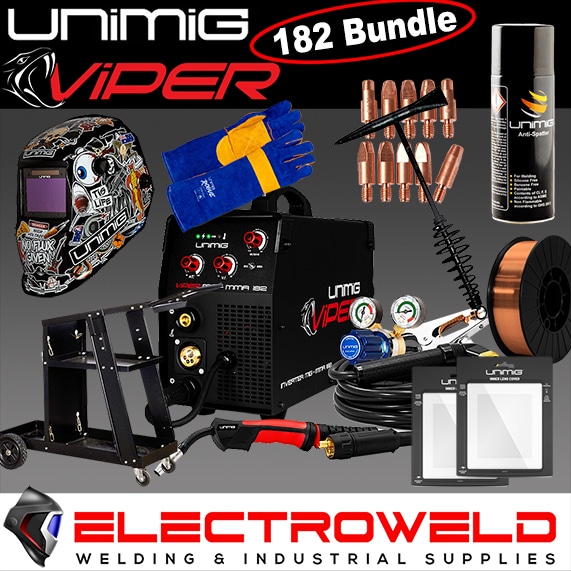

1 x VIPER 182 Mk II MIG/STICK Welder (with Life Time After Sales Machine Support)
10 x BINZEL M6 Steel Contact Tips 0.8mm
1 x UNIMIG Chipping Hammer
1 x UNIMIG Anti-Spatter Spray 400g
1 x 5kg ER70S-6 Mild Steel MIG Wire (0.8mm)
1 x BOSSWELD Machine Welding Trolley
1 CHAOS Automatic Welding Helmet
1 Pair x ROGUE Heavy Duty Welding Gloves
10 x Outer Lens Covers for Helmet
Included With The Viper 182 Welder:
1 x 3m SB15 MIG Torch
1 x 3m Twist Lock Electrode Holder
1 x 300 Amp Earth Clamp & Lead
1 x Twin Gauge Argon Regulator
1 x 2 Metre Gas Hose Complete with fittings
1 x 0.6/0.8mm V Groove Drive Roller
1 x 0.8/1mm V Groove Drive Roller
1 x 0.8/0.9mm F Groove Drive Roller
1 x Operating Manual

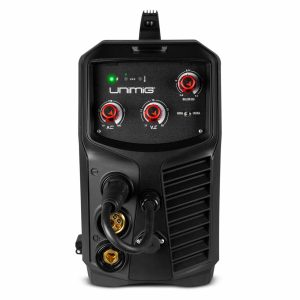

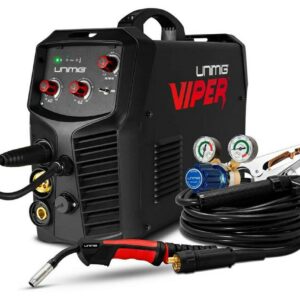

VIPER 182 Mk II Welder Features
The VIPER 182 Mk II MIG/STICK Welder builds on the success of the VIPER 182. It is an inverter-based portable MIG welding machine with added MMA function.
The MIG function allows you to weld with both Gas Shielded and Gas-less wire applications, providing MIG welding capabilities across a range of metals including mild steel, stainless steel and aluminium
Added Geared Wire Drive
Spool Gun connection
10 AMP domestic plug, making it the ultimate welding machine for the home workshop and DIY use.
Step-less adjustment of voltage and wire feed control ensure easy setting of welding parameters
Thermal Overload Protection prevents machine from exceeding a safe operating temperature.
Voltage Reduction Device prevents voltage overloading, protecting user and machine.
Stick welding (MMA) welding capability delivers easy electrode welding with high-quality results, including cast iron and stainless.
Wire Inch gives easy feeding of the wire during set up without gas wastage
Stick welding (MMA) welding capability delivers easy electrode welding with high-quality results, including cast iron and stainless.
MMA is also supported with the capability to run electrodes up to 4.0mm, perfect for jobs where access to a gas cylinder is unavailable.
Two year warranty.

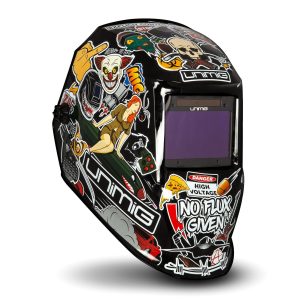

CHAOS™ Automatic Welding Helmet
With True Colour View Lens Technology this helmet provides protection from spatter and UV/IR radiation. Features a 1/1/1/2 classification, and fitted with 4 arc sensors, the helmet features 9-13 Shade control as well as GRIND mode.
BINZEL M6 Steel Contact Tips 0.8mm
Contact tips are one of the most frequently replaced components of a MIG gun. Responsible for guiding the wire and transferring the current from the conductor tube through the filler wire and ultimately to the workpiece. Its critical functions include current transfer and wire targeting.
UNIMIG Chipping Hammer
Hardened steel head supported by a heat resistant and shock dampening spring handle, along with an eye loop for pegboard hanging. Features a cone shaped head, with a sharp, flattened point and a dual bevelled tail. Ideal for removing slag and spatter clean up.
UNIMIG Anti-Spatter Spray
Minimises excessive spatter sticking to your consumables and work pieces after the welding process.
ROGUE™ Heavy Duty Welding Gloves
Built for high heat and intensity MIG welding and plasma cutting. Made from heat and flame-resistant premium split cowhide and high-strength Kevlar stitching.
BOSSWELD Small Machine Welding Trolley
Holds a D or E size gas cylinder on the back. Upward angle on the top also ensures that you can easily change the settings on your welder, and the middle shelf can be used for accessories. Made from a sturdy metal construction, free-moving front castor wheels and solid rear rubber wheels.
Overall dimensions: 70.5cm (L) x 41.9cm (W) x 77.5cm (H)
ER70S-6 Mild Steel MIG Wire
Copper-coated, triple de-oxidised solid MIG welding wire. Contains higher levels of manganese and silicon than most standard grades of MIG wire to produce high-quality welds. The high silicon content increases the fluidity of the weld pool creating a smoother bead appearance and resulting in minimal post-weld grinding. Engineered to provide porosity-free, x-ray quality welds with high tensile strength. Requires a shielding gas such as CO² or Argon/CO² mixes.
0/5 (0 Reviews)
Part Number: U11002K
Primary Input Voltage: 240V 1 Phase
Supply Plug: 10 Amp
Rated Input Power: 7.1 KVA
Ieff AMPS: 9.8
Rated Output: 30A/15.5V – 180A/23.0V
No Load Voltage: 62
MIG Wire Spool Size (Kgs): 1kg / 5kg
MIG Welding Current Range: 30 – 180 Amps
MIG Duty Cycle @40ºC – MIG: 10% @ 180Amps
MIG Wire Size Range: 0.6 – 0.9mm
MIG Welding Thickness Range: 1-10mm
Drive Roller Size: 30/22
Stick Welding Current Range: 10 – 160 Amps
Stick Duty Cycle @40ºC – MIG: 10% @ 160A
Stick Wire Size Range: 2.5 – 4.0mm
Stick Welding Thickness Range: 2-10mm
Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
Wire Drive: Geared
VRD: Yes
Spool Gun Connection: Yes
Burnback Adjustment: Yes
Wire Inch: Yes
Thermal Overload Protection: Over Temperature Warning
Dimensions(Mm): 553 x 214 x 388
Weight: 12kg
Warranty: 2 Year
