UNIMIG VIPER Multi 165 Mig Tig Stick Welder + Payday Helmet + Gloves U11006K

SKU: U11006K (Var)

$699.00

The VIPER 165 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER does it all, and it’s ready to go anywhere you have a standard 10-amp outlet.  Synergic MIG control. Take the guesswork out of the setup. Run mild steel, stainless steel & flux-cored mig wire.   Gas and gasless MIG.

in stock

Request Price Match

Please include full website address
null

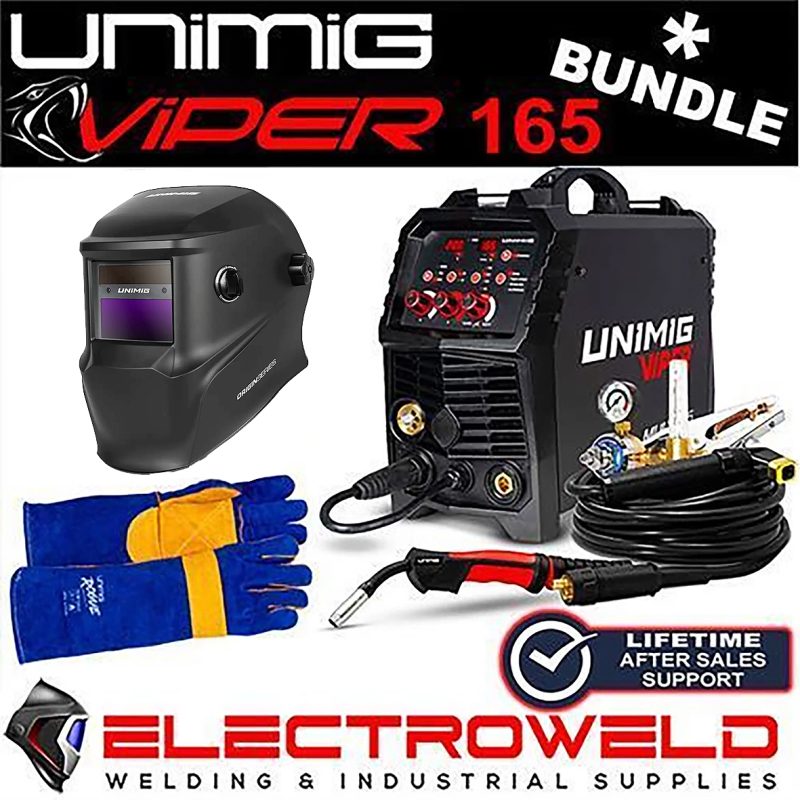

WHAT YOU GET:
1 x VIPER Multi 165 Mig Tig Stick Welder
1 x 3m SB15 MIG Torch
1 x 3m Twist Lock Electrode Holder
1 x 300 Amp Earth Clamp & Lead
1 x Argon Flowmeter
1 x 2m Gas Hose Complete with fittings
1 x Operating Manual
FEATURES:
The VIPER 165 is the ultimate multi-process welder for the DIY enthusiast.
 MIG, TIG or STICK, the VIPER does it all, and it’s ready to go anywhere you have a standard 10-amp outlet.
 Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.
 The VIPER 165 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.
 Welds Mild Steel, Stainless Steel, CastIron, Silicon Bronze, Aluminium, Copper.
 Compact & lightweight – With a size of only 513x206x391 mm and weighing only 9.8kg, you can take the VIPER Multi 165 with you anywhere.
 Synergic MIG control. Take the guesswork out of the setup.
 The machine also has other unique features such as Wire Drive, VRD, Wire inch, Inductance Control and Thermal Overload Protection.
 Gas and gasless MIG.
 Run mild steel, stainless steel & flux-cored mig wire.
 Plug in and play – The 10A plug can be used on any domestic outlet, so it’s perfect for the DIY home handyman or the professional welder looking to take it anywhere.
 With UNIMIG’s ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, efficiency, and reliability.
0/5 (0 Reviews)
SPECIFICATIONS:
Brand: UNIMIG
Part Number: U11006K
Dimensions: 513x206x391mm
Weight: 9.8kg
Primary Input Voltage: 240V Single Phase
Supply Plug: 10 AMP
Ieff: 10.0 A
Rated Output: 30A/15.5V – 165A/22.3V
No Load Voltage: 64V
Protection Class: IP21S
Insulation Class: H
Minimum Generator: 9.0 (kVA)
Dinse Connector: 35/50
Standard: AS/NZ60974-1
Warranty: 2 Years
MIG:
MIG Welding Current Range: 30-165A
MIG Duty Cycle @ 40°C:
10% @ 165A
60% @ 68A
100% @ 52A
MIG Wire Size Range: 0.6-0.9mm
MIG Wire Spool Size: 1kg / 5kg
MIG Welding Thickness Range: 1-8mm
Drive Roller SIze: 30/10
TIG:
TIG Function: Type DC Lift Arc
TIG Welding Current Range: 20-160A
TIG Duty Cycle @ 40°C:
10% @ 160A
60% @ 65A
100% @ 50A
TIG Welding Thickness Range: 1-6mm
Stick:
Stick Welding Current Range: 20-140A
Stick Duty Cycle @ 40°C:
10% @ 140A
60% @ 58A
100% @ 45A
Stick Electrode Range: 2.5-3.2mm
Stick Welding Thickness Range: 2-8mm
 MIG Wire Size Range: 0.6-0.9mm
