$1,449.95
| WHAT YOU GET: |
|---|
|

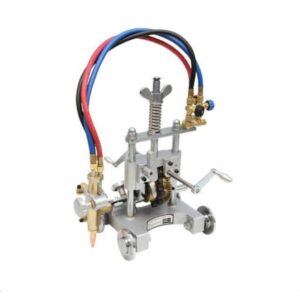

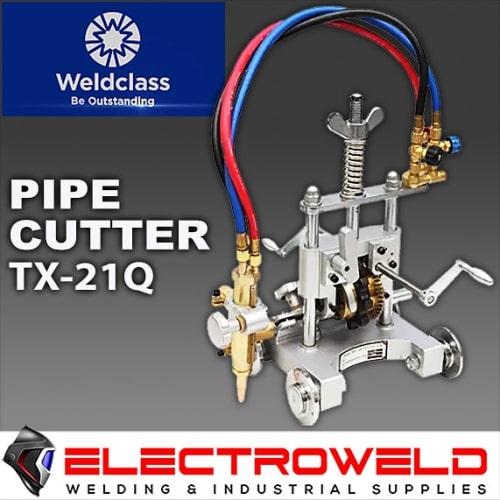

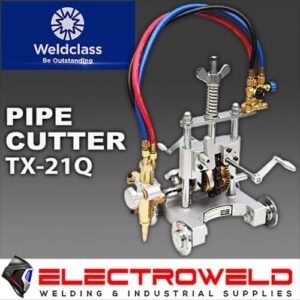

1 x WELDCLASS Pipe Cutter, 5-TX21Q
|
|
1 x Oxy / Fuel torch
|
|
1 x Torch Holder
|
|
1 x 2.4m chain – extra chains available
|
|
3 x cutting tips – 3 seat tips
|
|
4 x Idle wheels
|
|
Operating manual
|
| FEATURES: |
|---|
| This Weldclass pipe cutter with quick clutch and chain mechanism is a versatile, adaptable and controllable machine with a quick set-up time. |

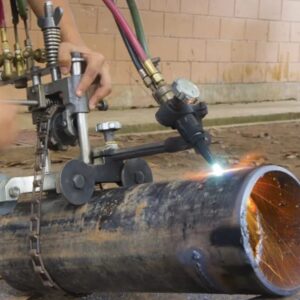

| Capable of cutting unlimited-sized pipe by using the chains to secure the machine to the pipe it is capable of straight 90-degree pipe cuts or bevel cutting pipe at angles up to 45 degrees. |
| Single Torch Head. |
| Minimum set-up time – Only torch height and angle adjustment are required. |
| Adaptable – Can be used with Oxy / Fuel torches having a 32mm barrel diameter. |
| Set-up time: 5 mins – Only torch height and angle adjustment are required. |
| SPECIFICATIONS: |
|---|
| Brand: Weldclass |
| Part Number: 5-TX21Q |
| Chain: 2.4M |
| Maximum Cutting Diameter: Approx. 600mm O/D with 1 chain. (unlimited additional chains can be added to cut the larger pipe) |
| Cutting Thickness: 3 to 250mm |
| Bevel Angle: 0-45 degrees |
| Gas: Oxy/Acetylene or Oxy/LPG |
| Cutting Tips: 3-Seat machine cutting tips; Oxy/Acetylene – Type 51, Oxy/LPG – Type 54. |
| Dimensions (Mm): 280L x 280W x 450H (excluding torch & hoses) |
| Weight (Kg): 13.0 |
