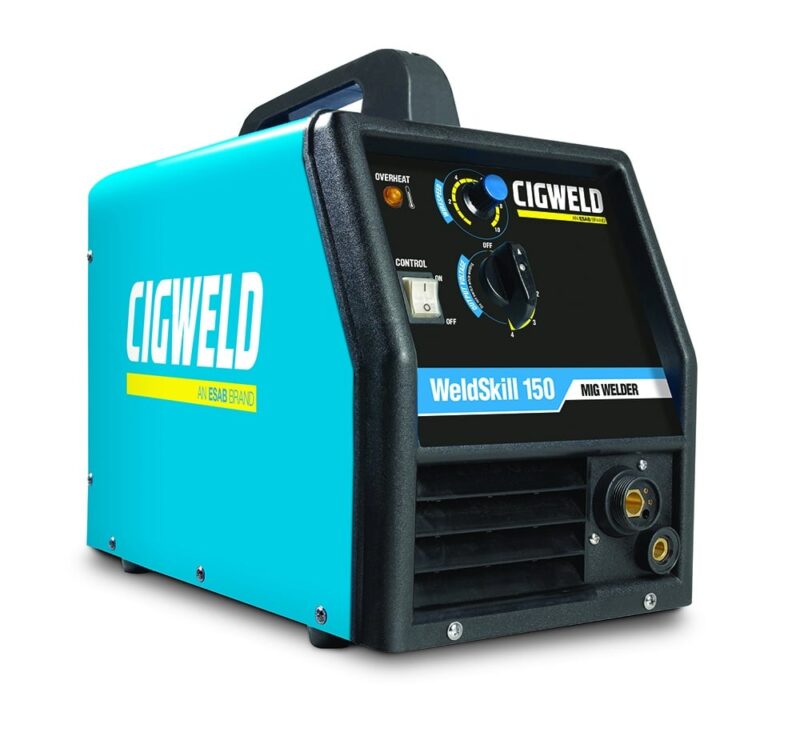

Cigweld Weldskill 150 Mig Welder – W1004150

SKU: W1004150

$499.00

The Cigweld WeldSkill 150 MIG is a single-phase compact power source designed specifically for handymen or tradesmen that require high-quality welding performance. The constant Voltage power source provides excellent arc performance with solid or flux-cored welding wires. It is ideal for a wide range of materials

in stock

Request Price Match

Please include full website address
null

The Cigweld WeldSkill 150 MIG is a single phase compact power source designed specifically for handymen or tradesman that require high quality welding performance. The constant Voltage power source provides excellent arc performance with solid or flux cored welding wires. It is ideal for a wide range of materials including stainless/mild steels and aluminium, and is suitable for the welding of mild steel up to 5mm thick(when used with appropriate consumables)

  • 240 Volt, 15 Amp Supply Lead
  • Over temperature cut out
  • Shielding Gas Operation
  • Gasless Operation
  • Fan Cooled
  • Maximum mild steel wire size of 0.9mm
  • AS Compliant
  • 1-Year Warranty

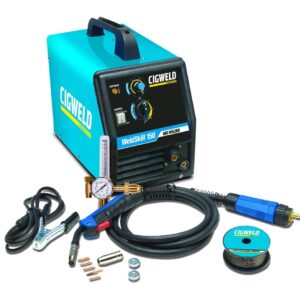

Package Contents:

  • WeldSkill 150 Power Source
  • Mig Torch (Euro torch connector)
  • Work Lead (25mm2 Dinse Connector)
  • Argon Regulator/Flowmeter
  • Mini Spool 0.8mm Gasless Mild Steel Mig Wire
  • Feed Roll 0.6/0.8mm (spare)
  • Feed Roll 1.0/1.2mm (spare)
  • Contact Tip 0.6mm (spare)
  • Contact Tip 0.8mm (spare)
  • Contact Tip 0.9mm (spare)
  • Contact Tip 1.0mm (spare)
  • Contact Tip 1.2mm (spare)
  • Nozzle (spare)

Dimensions
275H x 245W x 420D mm

Generator Requirement
7kVa

Input Frequency
50Hz

Input Voltage
240V/15%

Output Range
41 – 130 amps (150A max)

Rated Output @ Duty Cycle
130A/20.5V @ 10% Duty Cycle

Weight (Power Source)
20kg
